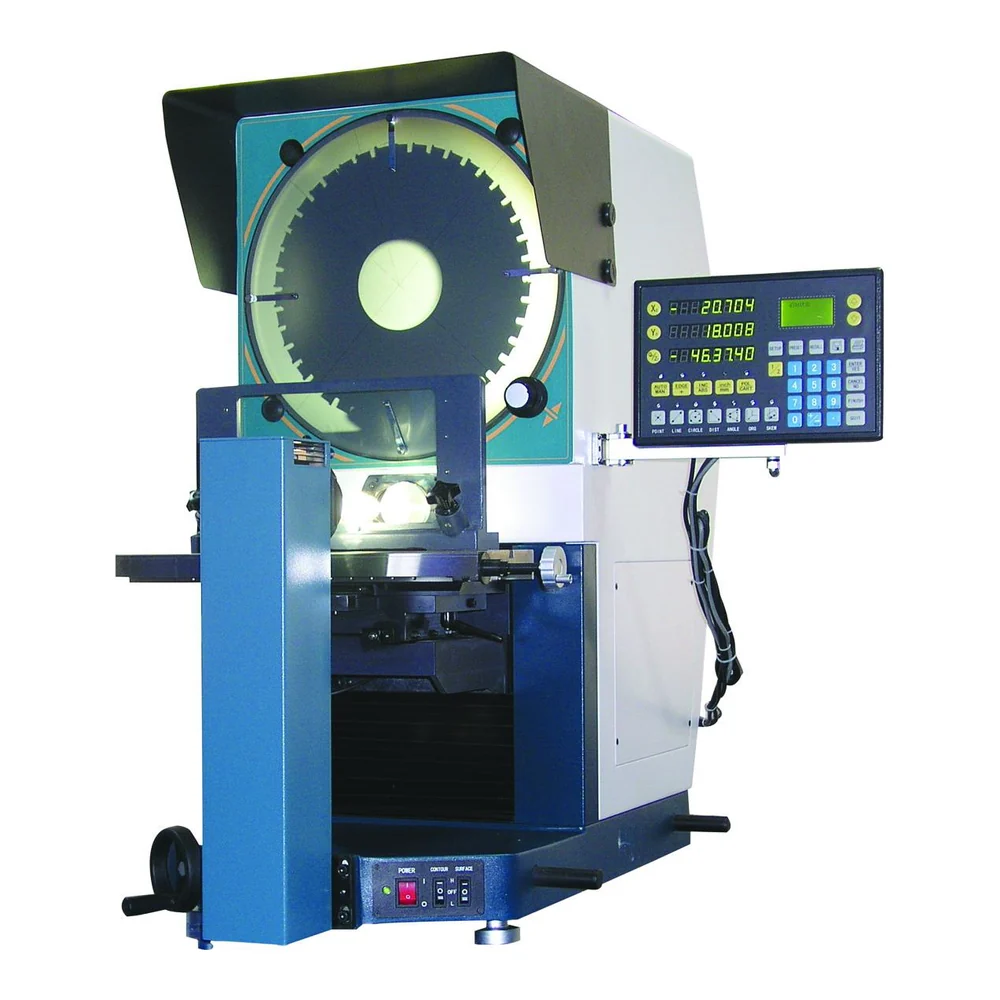

Ø400 Digital Measuring Projector Ph-460 ve İlgili Modeller, Profil projeksiyonu, görüntülü ölçüm ve koordinat ölçüm uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.
Katalog teknik bilgileri:

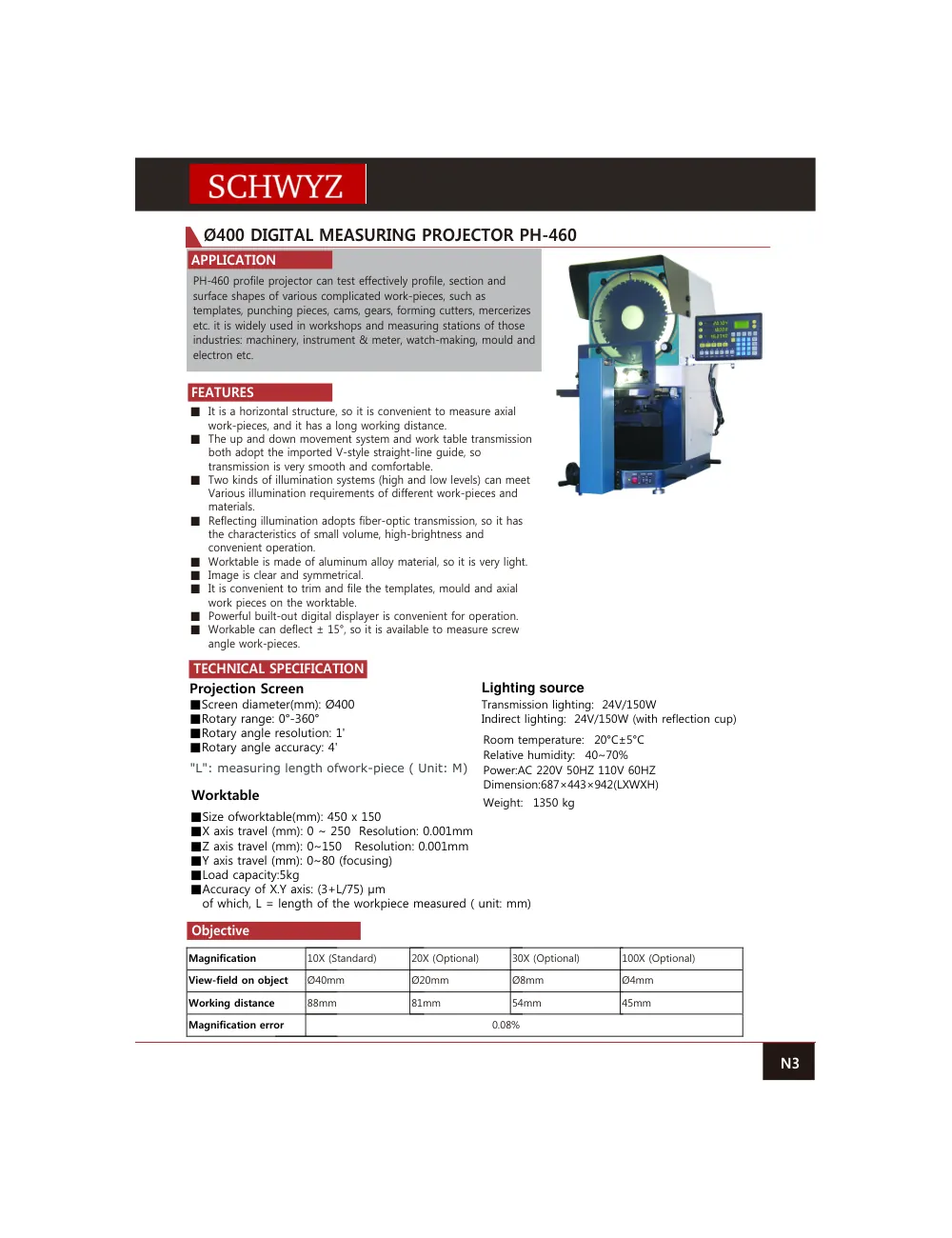

N3 Ø400 DIGITAL MEASURING PROJECTOR PH-460 Magnification 10X (Standard) 20X (Optional) 30X (Optional) 100X (Optional) View-field on object Ø40mm Ø20mm Ø8mm Ø4mm Working distance 88mm 81mm 54mm 45mm Magnification error 0.08% Objective APPLICATION PH-460 profile projector can test effectively profile, section and surface shapes of various complicated work-pieces, such as templates, punching pieces, cams, gears, forming cutters, mercerizes etc. it is widely used in workshops and measuring stations of those industries: machinery, instrument & meter, watch-making, mould and electron etc. FEATURES • It is a horizontal structure, so it is convenient to measure axial work-pieces, and it has a long working distance. • The up and down movement system and work table transmission both adopt the imported V-style straight-line guide, so transmission is very smooth and comfortable. • Two kinds of illumination systems (high and low levels) can meet Various illumination requirements of different work-pieces and materials. • Reflecting illumination adopts fiber-optic transmission, so it has the characteristics of small volume, high-brightness and convenient operation. • Worktable is made of aluminum alloy material, so it is very light. • Image is clear and symmetrical. • It is convenient to trim and file the templates, mould and axial work pieces on the worktable. • Powerful built-out digital displayer is convenient for operation. • Workable can deflect ± 15°, so it is available to measure screw angle work-pieces. TECHNICAL SPECIFICATION Projection Screen • Screen diameter(mm): Ø400 • Rotary range: 0°-360° • Rotary angle resolution: 1' • Rotary angle accuracy: 4' "L": measuring length ofwork-piece ( Unit: M) Worktable • Size ofworktable(mm): 450 x 150 • X axis travel (mm): 0 ~ 250 Resolution: 0.001mm • Z axis travel (mm): 0~150 Resolution: 0.001mm • Y axis travel (mm): 0~80 (focusing) • Load capacity:5kg • Accuracy of X.Y axis: (3+L/75) µm of which, L = length of the workpiece measured ( unit: mm) Lighting source Transmission lighting: 24V/150W Indirect lighting: 24V/150W (with reflection cup) Room temperature: 20°C±5°C Relative humidity: 40~70% Power:AC 220V 50HZ 110V 60HZ Dimension:687×443×942(LXWXH) Weight: 1350 kg
| Ürün grubu |
Optik ve Dokunmalı Ölçüm Sistemleri |
| Katalog modelleri |
Ø400 DIGITAL MEASURING PROJECTOR PH-460; PH-460 profile projector can test effectively profile, section and; surface shapes of various complicated work-pieces, such as; templates, punching pieces, cams, gears, forming cutters, mercerizes; etc. it is widely used in workshops and measuring stations of those; industries: machinery, instrument & meter, watch-making, mould and; electron etc.; • It is a |
| Katalog |
SCHWYZ PROJEKSİYON VE DOKUNMA ÖLÇÜMCİHAZLARI 2025-27 |
| Katalog sayfası |
4 |
