ACCURATE Dijital Su Terazisi ve İlgili Modeller

ACCURATE Dijital Su Terazisi ve İlgili Modeller, Hassas açı ölçümü, hizalama ve geometrik kontrol uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:
F6 DIGITAL ANGLE LEVEL FEATURES： • Increase/decrease angle : 0.05° • Measuring accuracy : ± 0.5° • Accurately measures angles. • With pivot lock and spirit level(bubble) (Horizontal & Vertical). • Illuminated LED display with light feature. • Automatically shut off after three minutes. • Display reading "Hold" function 0.05° ±0.05° 0-225° Model No. Range mm Resolution Accuracy P7204-210 Unit: mm DIGITAL ANGLE FINDER FEATURES： • Buttons: on/off, hold (keep the reading), zero, ABS (absolute and incremental measurement) • Fix the locking screw at 4 positions for different measuring ranges: 0~225°, -225°~0°, -45°~180°, -180°~45° • Remove the locking screw for 360° range • With level vial • Battery CR2032, automatic power off 0.05° ±0.15° 0-360° Model No. Range mm Resolution Accuracy P7204-200 Unit: mm ACCURATE DIGITAL LEVEL FEATURES: • Pitch - Measure the angle of a roof in inches of rise per foot • Slope - Measure an incline in percent or degree • True Level - Displays the absolute angle of a work surface • Relative Angle Measurement - Compare the angle between two work surfaces • Audio Alert - Optional sound can chime for plumb and level • Illuminated Display - Bright green LED screen for ease of reading in all lighting conditions • Invert Display - LCD display inverts when using level upside down for easy reading • Display "Holds" - Hold button locks display to allow unit to move for easier reading • Sturdy Frame - Milled aluminum top and bottom rails ensure accurate measuring • Magnets in Base - Bottom rail has powerful magnets built in for steady measuring on metal pipes and conduit • Bubble Vial - Helps visualize angle • Accuracy - Accurate to ±0.2° • Auto-Off - Level has auto-off feature to extend battery life TECHNICAL SPECIFICATION • Resolution: 0.1° • Accuracy: ±0.2° • Measuring Range: 4x90°; 100%; 12 in/ft • Operating Temperature Range: 14° F - 122° F (-10° -50° C) • Work Humidity: ≤85% • Battery DC 1.5 V (AAA x1) • Estimated Battery Life: 25-30 hours in continuous use (6 months storage) • Display: Green (Always-on Backlit LCD) • Digital Display of Angle: °(Degree), % (Slope), in/ft (Pitch) • Magnet: Bottom rail has built-in powerful magnets in base Unit: mm Model no. Range Lenth mm P7203-300 0-300mm 300 P7203-400 0-400mm 400 P7203-600 0-600mm 600 P7203-800 0-800mm 800 P7203-1000 0-1000mm 1000 P7203-1200 0-1200mm 1200

Ürün grubu	Açı Ölçerler ve Gönyeler
Katalog modelleri	ACCURATE DIGITAL LEVEL; DIGITAL ANGLE LEVEL; DIGITAL ANGLE FINDER

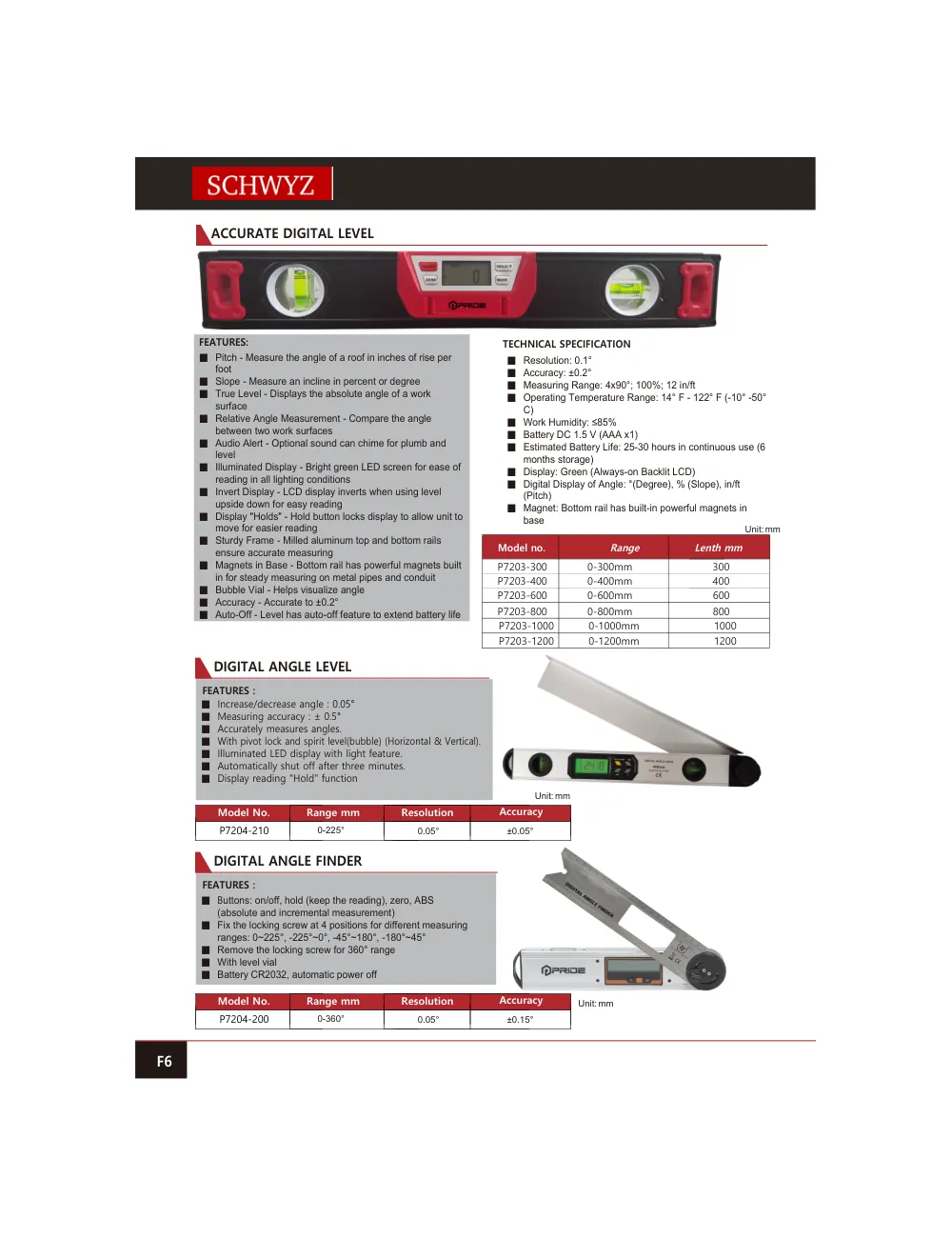

Katalog	SCHWYZ AÇI ÖLÇER ÇEŞİTLERİ 2025 -27
Katalog sayfası	7
