Advanges ve İlgili Modeller

Advanges ve İlgili Modeller, Boyutsal karşılaştırma, salgı, derinlik, iç çap ve hassas konum kontrolü için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

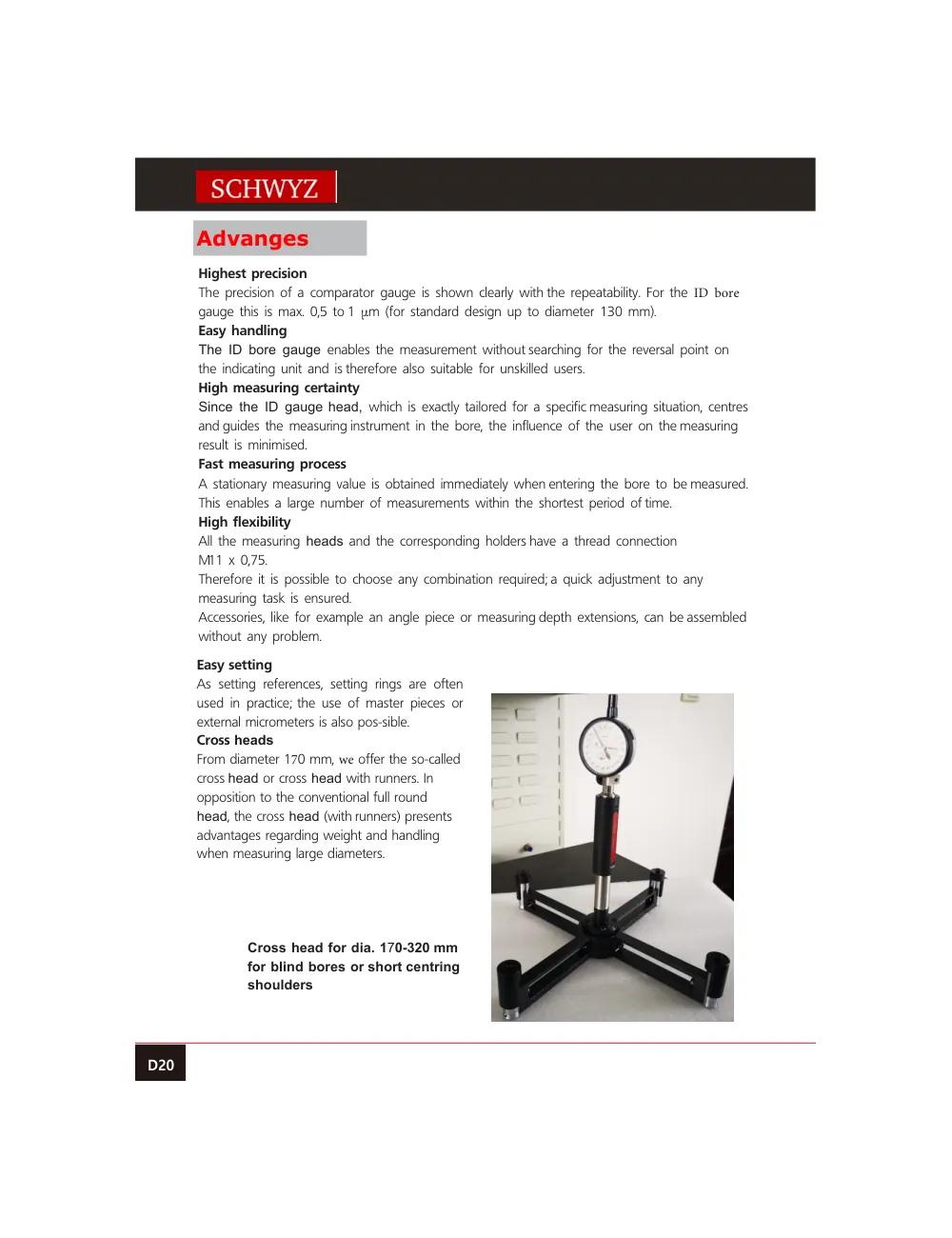

D20 Highest precision The precision of a comparator gauge is shown clearly with the repeatability. For the ID bore gauge this is max. 0,5 to 1 µm (for standard design up to diameter 130 mm). Easy handling The ID bore gauge enables the measurement without searching for the reversal point on the indicating unit and is therefore also suitable for unskilled users. High measuring certainty Since the ID gauge head, which is exactly tailored for a specific measuring situation, centres and guides the measuring instrument in the bore, the influence of the user on the measuring result is minimised. Fast measuring process A stationary measuring value is obtained immediately when entering the bore to be measured. This enables a large number of measurements within the shortest period of time. High flexibility All the measuring heads and the corresponding holders have a thread connection M 11 x 0,75. Therefore it is possible to choose any combination required; a quick adjustment to any measuring task is ensured. Accessories, like for example an angle piece or measuring depth extensions, can be assembled without any problem. Cross head for dia. 170-320 mm for blind bores or short centring shoulders Easy setting As setting references, setting rings are often used in practice; the use of master pieces or external micrometers is also pos-sible. Cross heads From diameter 170 mm, we offer the so-called cross head or cross head with runners. In opposition to the conventional full round head, the cross head (with runners) presents advantages regarding weight and handling when measuring large diameters. Advanges

Ürün grubu	Komparatörler ve Ölçüm Saatleri
Katalog modelleri	Advanges; Highest precision; The precision of a comparator gauge is shown clearly with the repeatability. For the ID bore; gauge this is max. 0,5 to 1 µm (for standard design up to diameter 130 mm).; Easy handling; The ID bore gauge enables the measurement without searching for the reversal point on; the indicating unit and is therefore also suitable for unskilled users.; High measuring certainty
Katalog	SCHWYZ KOMPORATÖR VE ÇEŞİTLERİ 2025-27
Katalog sayfası	21
