Dijital THREE POINT INTERNAL Mikrometre IP54 ve İlgili Modeller

DIGITAL THREE POINT INTERNAL Mikrometre IP54 ve İlgili Modeller, Dış, iç, derinlik ve özel profil ölçümlerinde yüksek hassasiyet için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

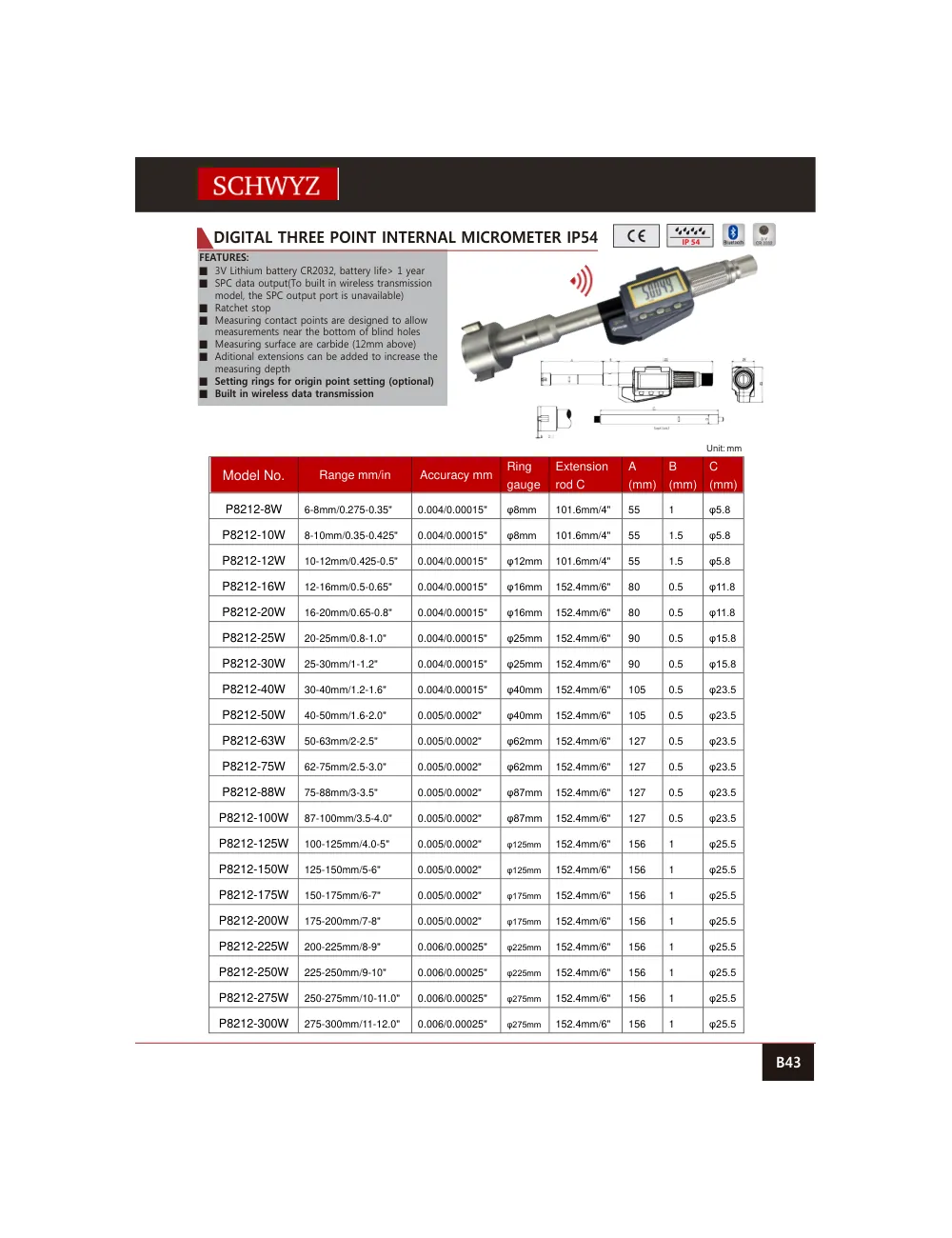

B43 DIGITAL THREE POINT INTERNAL MICROMETER IP54 FEATURES: • 3V Lithium battery CR2032, battery life> 1 year • SPC data output(To built in wireless transmission model, the SPC output port is unavailable) • Ratchet stop • Measuring contact points are designed to allow measurements near the bottom of blind holes • Measuring surface are carbide (12mm above) • Aditional extensions can be added to increase the measuring depth • Setting rings for origin point setting (optional) • Built in wireless data transmission IP 54 Model No. Range mm/in Accuracy mm Ring gauge Extension rod C A (mm) B (mm) C (mm) P8212-8W 6-8mm/0.275-0.35" 0.004/0.00015" φ8mm 101.6mm/4" 55 1 φ5.8 P8212-10W 8-10mm/0.35-0.425" 0.004/0.00015" φ8mm 101.6mm/4" 55 1.5 φ5.8 P8212-12W 10-12mm/0.425-0.5" 0.004/0.00015" φ12mm 101.6mm/4" 55 1.5 φ5.8 P8212-16W 12-16mm/0.5-0.65" 0.004/0.00015" φ16mm 152.4mm/6" 80 0.5 φ11.8 P8212-20W 16-20mm/0.65-0.8" 0.004/0.00015" φ16mm 152.4mm/6" 80 0.5 φ11.8 P8212-25W 20-25mm/0.8-1.0" 0.004/0.00015" φ25mm 152.4mm/6" 90 0.5 φ15.8 P8212-30W 25-30mm/1-1.2" 0.004/0.00015" φ25mm 152.4mm/6" 90 0.5 φ15.8 P8212-40W 30-40mm/1.2-1.6" 0.004/0.00015" φ40mm 152.4mm/6" 105 0.5 φ23.5 P8212-50W 40-50mm/1.6-2.0" 0.005/0.0002" φ40mm 152.4mm/6" 105 0.5 φ23.5 P8212-63W 50-63mm/2-2.5" 0.005/0.0002" φ62mm 152.4mm/6" 127 0.5 φ23.5 P8212-75W 62-75mm/2.5-3.0" 0.005/0.0002" φ62mm 152.4mm/6" 127 0.5 φ23.5 P8212-88W 75-88mm/3-3.5" 0.005/0.0002" φ87mm 152.4mm/6" 127 0.5 φ23.5 P8212-100W 87-100mm/3.5-4.0" 0.005/0.0002" φ87mm 152.4mm/6" 127 0.5 φ23.5 P8212-125W 100-125mm/4.0-5" 0.005/0.0002" φ125mm 152.4mm/6" 156 1 φ25.5 P8212-150W 125-150mm/5-6" 0.005/0.0002" φ125mm 152.4mm/6" 156 1 φ25.5 P8212-175W 150-175mm/6-7" 0.005/0.0002" φ175mm 152.4mm/6" 156 1 φ25.5 P8212-200W 175-200mm/7-8" 0.005/0.0002" φ175mm 152.4mm/6" 156 1 φ25.5 P8212-225W 200-225mm/8-9" 0.006/0.00025" φ225mm 152.4mm/6" 156 1 φ25.5 P8212-250W 225-250mm/9-10" 0.006/0.00025" φ225mm 152.4mm/6" 156 1 φ25.5 P8212-275W 250-275mm/10-11.0" 0.006/0.00025" φ275mm 152.4mm/6" 156 1 φ25.5 P8212-300W 275-300mm/11-12.0" 0.006/0.00025" φ275mm 152.4mm/6" 156 1 φ25.5 Unit: mm

Ürün grubu	Mikrometreler
Katalog modelleri	DIGITAL THREE POINT INTERNAL MICROMETER IP54; Extension; Accuracy mm; Range mm/in; gauge
Katalog	SCHWYZ MİCROMETRE KATALOĞU 2025-27
Katalog sayfası	43
