Dijital Su Terazisi BOX

Dijital Su Terazisi BOX, Hassas açı ölçümü, hizalama ve geometrik kontrol uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

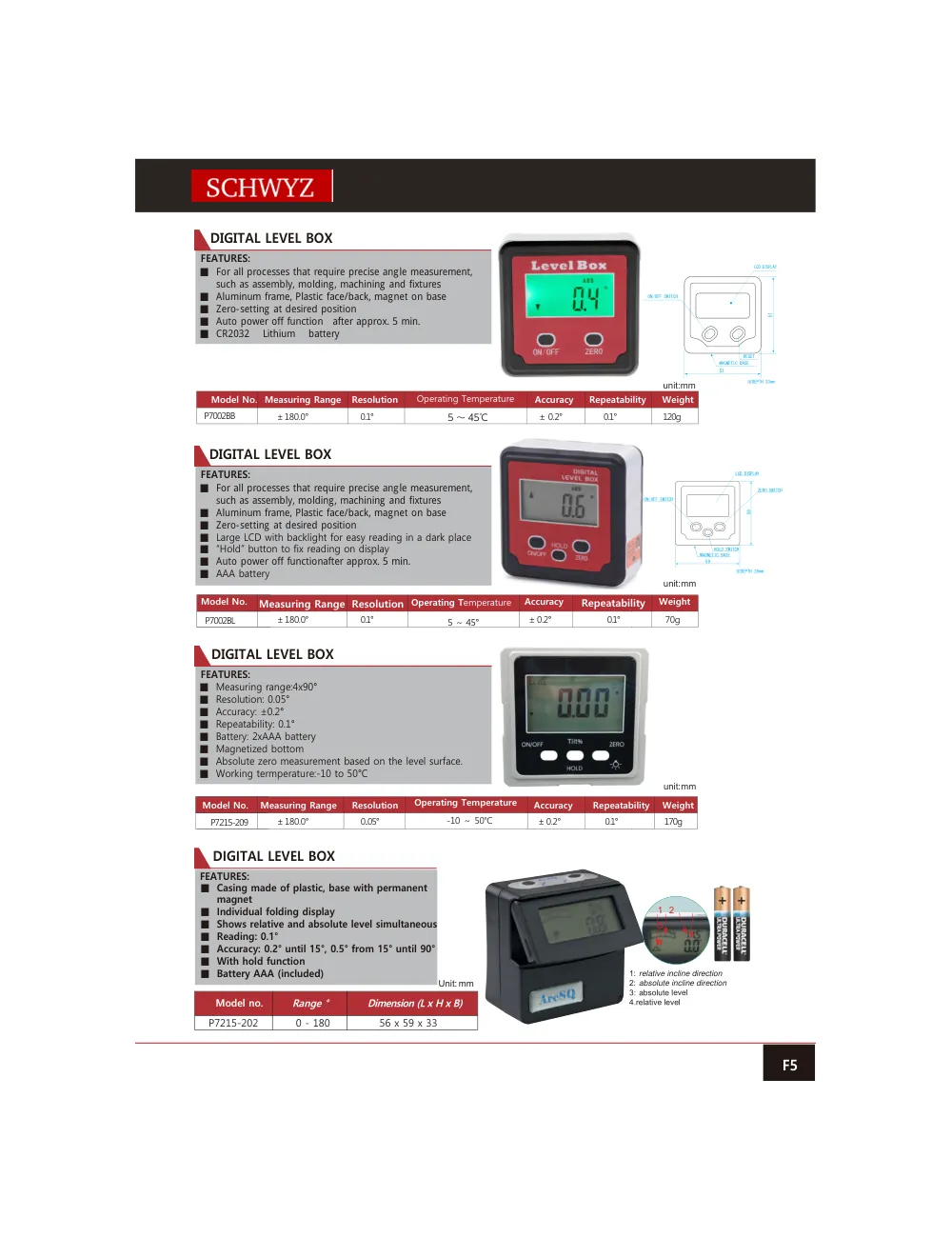

Katalog teknik bilgileri:
F5 DIGITAL LEVEL BOX • For all processes that require precise angle measurement, such as assembly, molding, machining and fixtures • Aluminum frame, Plastic face/back, magnet on base • Zero-setting at desired position • Auto power off functionムafter approx. 5 min.メ • CR2032ム Lithiumメ battery FEATURES: DIGITAL LEVEL BOX • For all processes that require precise angle measurement, such as assembly, molding, machining and fixtures • Aluminum frame, Plastic face/back, magnet on base • Zero-setting at desired position • Large LCD with backlight for easy reading in a dark place • “Hold” button to fix reading on display • Auto power off functionafter approx. 5 min.メ • AAA battery FEATURES: Model No. Measuring Range Resolution Accuracy Repeatability Weight P7002BL ±180.0° 0.1° Operating Temperature 5 ～ 45° ± 0.2° 0.1° 70g DIGITAL LEVEL BOX • Measuring range:4x90° • Resolution: 0.05° • Accuracy: ±0.2° • Repeatability: 0.1° • Battery: 2xAAA battery • Magnetized bottom • Absolute zero measurement based on the level surface. • Working termperature:-10 to 50°C FEATURES: Model No. Measuring Range Resolution Accuracy Repeatability Weight P7215-209 ±180.0° 0..05° Operating Temperature -10 ～ 50℃ ± 0.2° 0.1° 170g Model No. Measuring Range Resolution Accuracy Repeatability Weight P7002BB ±180.0° 0.1° Operating Temperature 5 ～ 45℃ ± 0.2° 0.1° 120g unit: mm unit: mm unit: mm 212))6:,7&+ /&'',63/$< 5(6(7 0$*1(7,&%$6(ͤ '(37+PP /&'',63/$< =(526:,7&+ +2/'6:,7&+ͤ '(37+PP   212))6:,7&+ 0$*1(7,&%$6( DIGITAL LEVEL BOX FEATURES: • Casing made of plastic, base with permanent magnet • Individual folding display • Shows relative and absolute level simultaneous • Reading: 0.1° • Accuracy: 0.2° until 15°, 0.5° from 15° until 90° • With hold function • Battery AAA (included) Unit: mm Model no. Range ° Dimension (L x H x B) 56 x 59 x 33 mm P7215-202 0 - 180 1 2 3 4 1: relative incline direction 2: absolute incline direction 3: absolute level 4.relative level

Ürün grubu	Açı Ölçerler ve Gönyeler
Katalog modelleri	DIGITAL LEVEL BOX
Katalog	SCHWYZ AÇI ÖLÇER ÇEŞİTLERİ 2025 -27
Katalog sayfası	6
