ELECTRONIC SCREW THREAD Mikrometre -NON ROTATING ve İlgili Modeller

ELECTRONIC SCREW THREAD Mikrometre -NON ROTATING ve İlgili Modeller, Dış, iç, derinlik ve özel profil ölçümlerinde yüksek hassasiyet için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

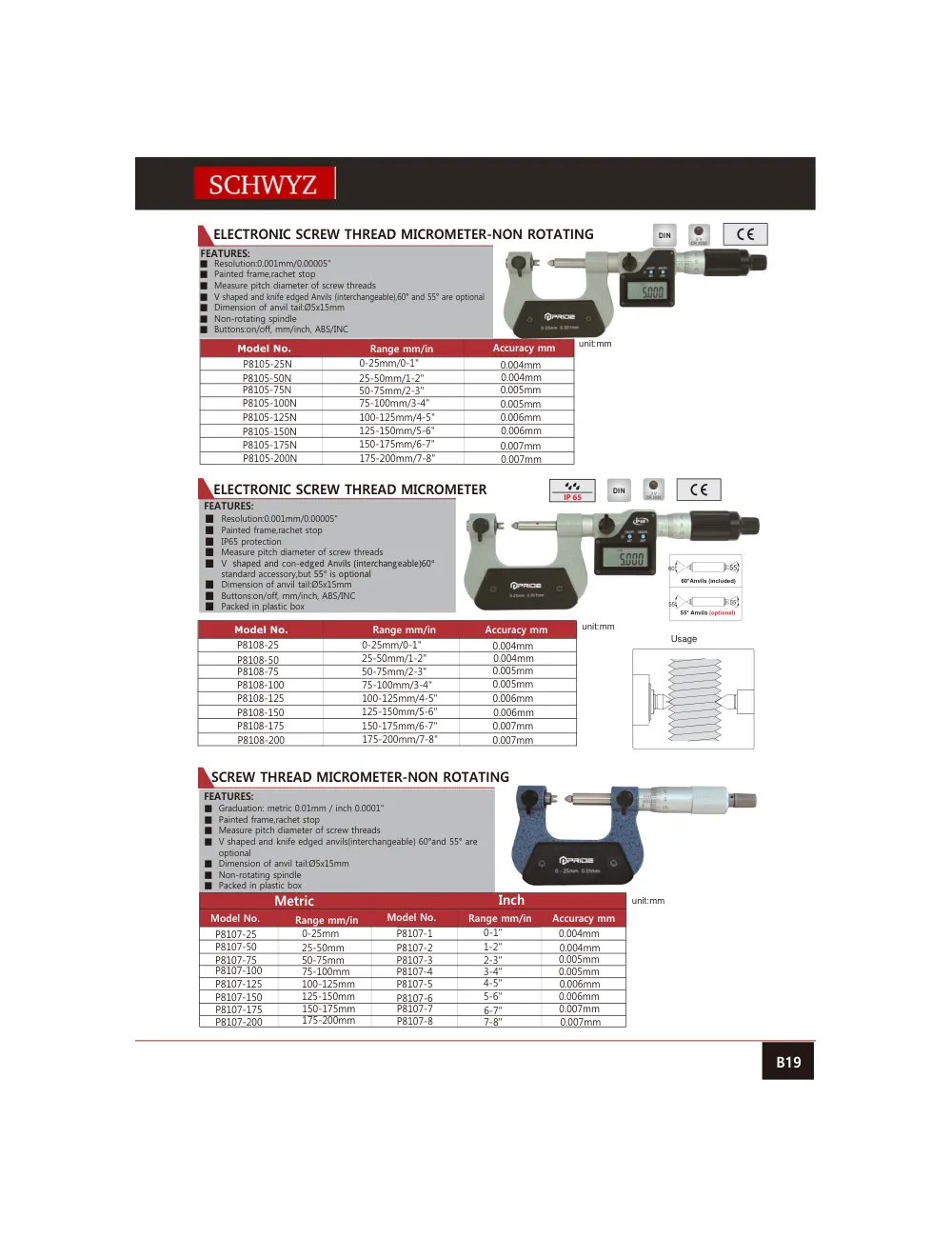

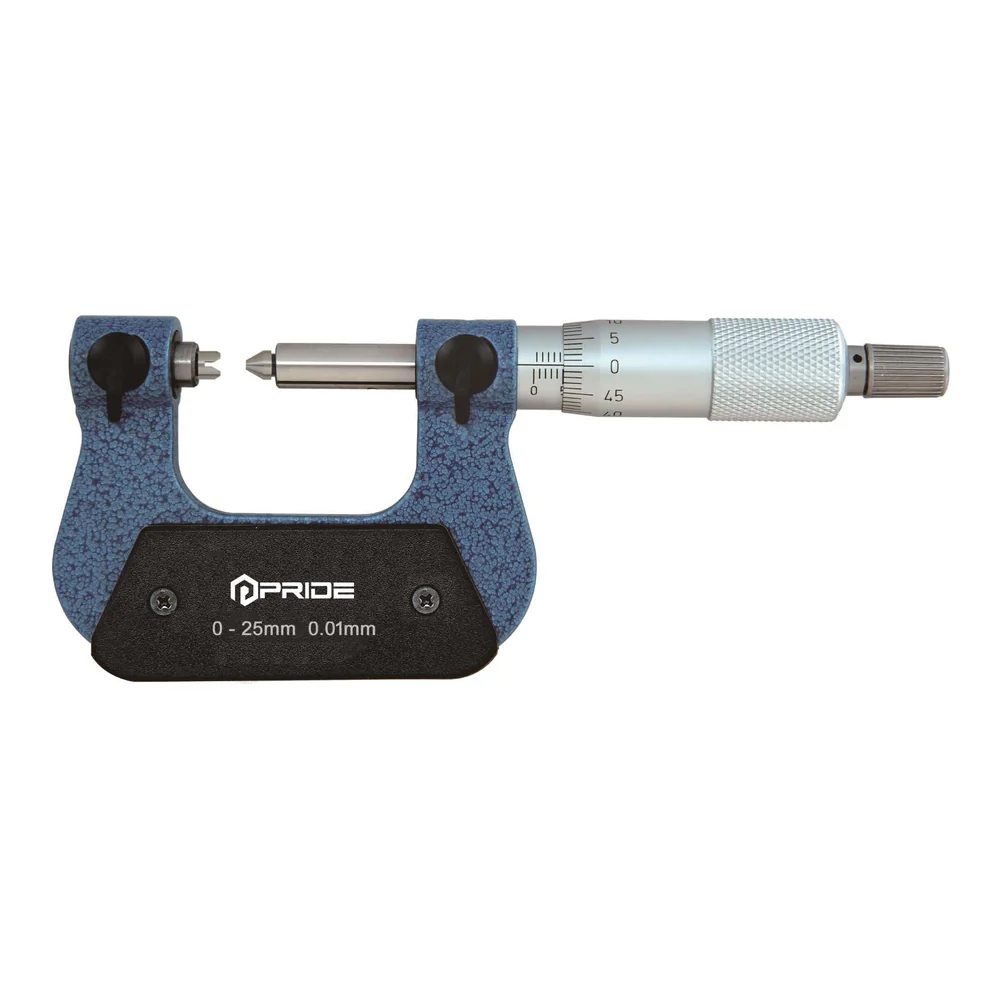

B19 unit: mm ELECTRONIC SCREW THREAD MICROMETER-NON ROTATING FEATURES: • Resolution:0.001mm/0.00005" • Painted frame,rachet stop • Measure pitch diameter of screw threads • V shaped and knife edged Anvils (interchangeable),60° and 55° are optional • Dimension of anvil tail:Ø5x15mm • Non-rotating spindle • Buttons:on/off, mm/inch, ABS/INC P8105-50N P8105-75N Accuracy mm 0-25mm/0-1" 25-50mm/1-2" 50-75mm/2-3" Range mm/in 0.004mm 0.004mm 0.005mm P8105-100N 75-100mm/3-4" 0.005mm P8105-150N P8105-175N P8105-125N 100-125mm/4-5" 125-150mm/5-6" 150-175mm/6-7" 0.006mm 0.006mm 0.007mm P8105-200N 175-200mm/7-8" 0.007mm P8105-25N unit: mm SCREW THREAD MICROMETER-NON ROTATING FEATURES: • Graduation: metric 0.01mm / inch 0.0001" • Painted frame,rachet stop • Measure pitch diameter of screw threads • V shaped and knife edged anvils(interchangeable) 60°and 55° are optional • Dimension of anvil tail:Ø5x15mm • Non-rotating spindle • Packed in plastic box P8107-50 P8107-75 P8107-25 Accuracy mm 0-25mm 25-50mm 50-75mm Range mm/in 0.004mm 0.004mm 0.005mm P8107-125 P8107-150 P8107-100 75-100mm 100-125mm 125-150mm 0.005mm 0.006mm 0.006mm P8107-175 150-175mm 0.007mm Model No. 0-1" 1-2" 2-3" Range mm/in 3-4" 4-5" 5-6" 6-7" Model No. Metric Inch P8107-2 P8107-3 P8107-1 P8107-5 P8107-6 P8107-4 P8107-7 P8107-200 175-200mm P8107-8 7-8" 0.007mm ELECTRONIC SCREW THREAD MICROMETER FEATURES: • Resolution:0.001mm/0.00005" • Painted frame,rachet stop • IP65 protection • Measure pitch diameter of screw threads • V shaped and con-edged Anvils (interchangeable)60° standard accessory,but 55° is optional • Dimension of anvil tail:Ø5x15mm • Buttons:on/off, mm/inch, ABS/INC • Packed in plastic box unit: mm P8108-50 P8108-75 P8108-25 Accuracy mm 0-25mm/0-1" 25-50mm/1-2" 50-75mm/2-3" Range mm/in 0.004mm 0.004mm 0.005mm P8108-100 75-100mm/3-4" 0.005mm P8108-150 P8108-175 P8108-125 100-125mm/4-5" 125-150mm/5-6" 150-175mm/6-7" 0.006mm 0.006mm 0.007mm IP 65 P8108-200 175-200mm/7-8" 0.007mm 60° 55° 60°Anvils (included) 55° 55° 55° Anvils (optional) Usage

Ürün grubu	Mikrometreler
Katalog modelleri	ELECTRONIC SCREW THREAD MICROMETER -NON ROTATING; ELECTRONIC SCREW THREAD MICROMETER; SCREW THREAD MICROMETER-NON ROTATING; M etric
Katalog	SCHWYZ MİCROMETRE KATALOĞU 2025-27
Katalog sayfası	19
