ID BORE Mastar ve İlgili Modeller

ID BORE Mastar ve İlgili Modeller, Boyutsal karşılaştırma, salgı, derinlik, iç çap ve hassas konum kontrolü için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

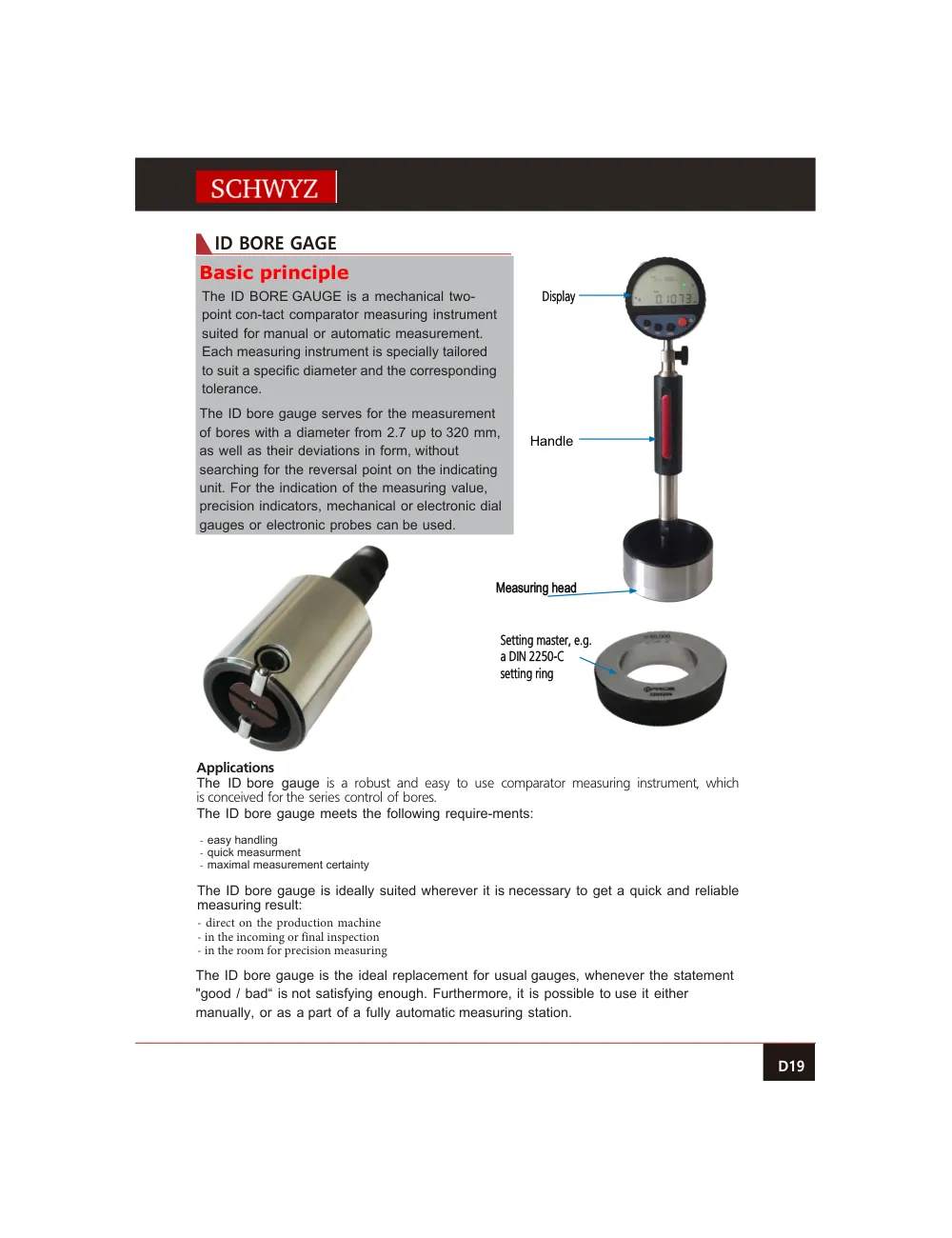

D19 Applications The ID bore gauge is a robust and easy to use comparator measuring instrument, which is conceived for the series control of bores. The ID bore gauge meets the following require-ments: The ID bore gauge is ideally suited wherever it is necessary to get a quick and reliable measuring result: - direct on the production machine - in the incoming or final inspection - in the room for precision measuring The ID bore gauge is the ideal replacement for usual gauges, whenever the statement "good / bad“ is not satisfying enough. Furthermore, it is possible to use it either manually, or as a part of a fully automatic measuring station. - easy handling - quick measurment - maximal measurement certainty Display Handle Measuring head Setting master, e.g. a DIN 2250-C setting ring Basic principle The ID BORE GAUGE is a mechanical two- point con-tact comparator measuring instrument suited for manual or automatic measurement. Each measuring instrument is specially tailored to suit a specific diameter and the corresponding tolerance. The ID bore gauge serves for the measurement of bores with a diameter from 2.7 up to 320 mm, as well as their deviations in form, without searching for the reversal point on the indicating unit. For the indication of the measuring value, precision indicators, mechanical or electronic dial gauges or electronic probes can be used. ID BORE GAGE

Ürün grubu	Komparatörler ve Ölçüm Saatleri
Katalog modelleri	ID BORE GAGE; Basic principle; The ID BORE GAUGE is a mechanical two-; Display; point con-tact comparator measuring instrument; suited for manual or automatic measurement.; Each measuring instrument is specially tailored; to suit a specific diameter and the corresponding
Katalog	SCHWYZ KOMPORATÖR VE ÇEŞİTLERİ 2025-27
Katalog sayfası	20
