Ip65 Dijital Test Indicator ve İlgili Modeller

Ip65 Digital Test Indicator ve İlgili Modeller, Boyutsal karşılaştırma, salgı, derinlik, iç çap ve hassas konum kontrolü için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

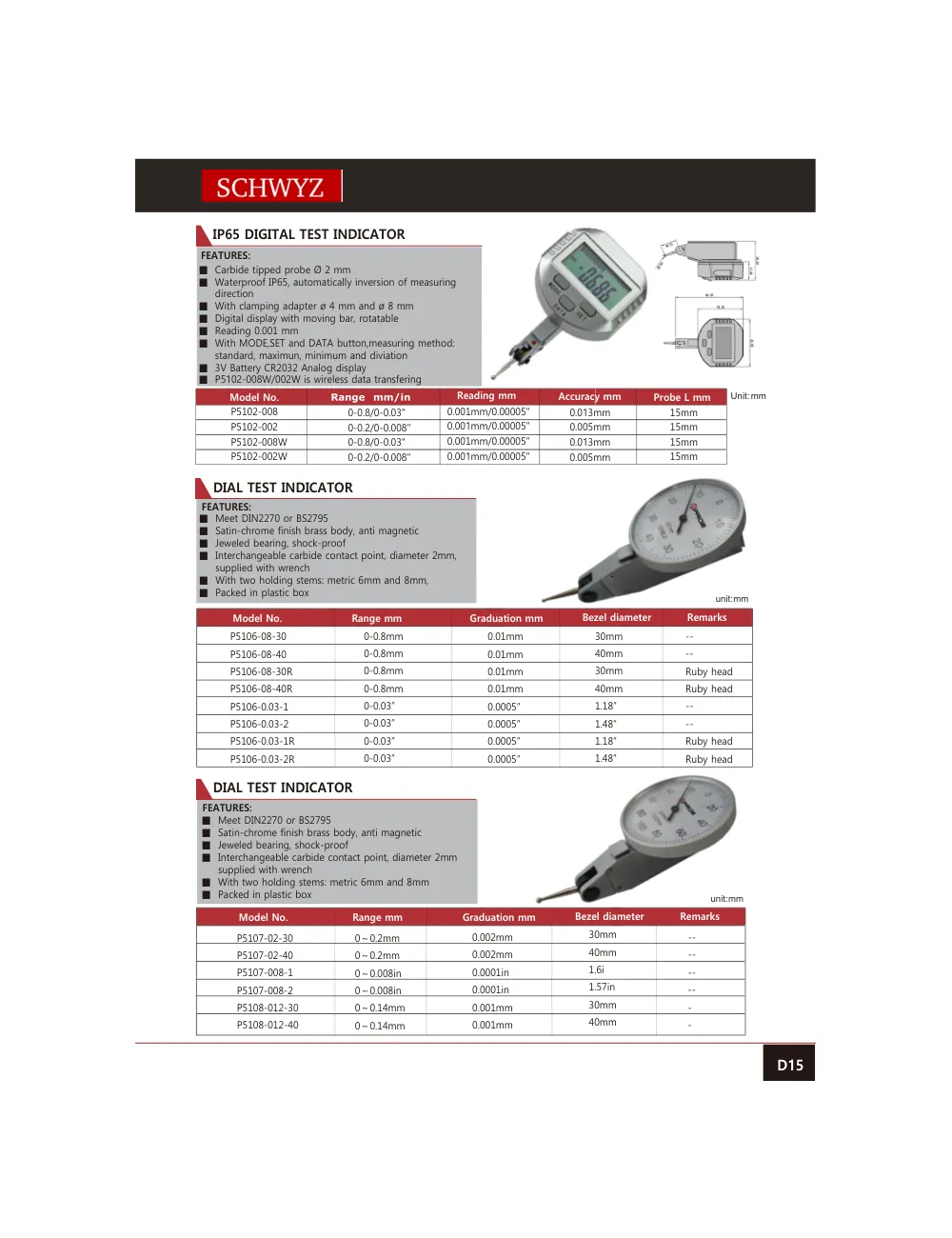

Katalog teknik bilgileri:
D15 IP65 DIGITAL TEST INDICATOR FEATURES: • Carbide tipped probe Ø 2 mm • Waterproof IP65, automatically inversion of measuring direction • With clamping adapter ø 4 mm and ø 8 mm • Digital display with moving bar, rotatable • Reading 0.001 mm • With MODE,SET and DATA button,measuring method: standard, maximun, minimum and diviation • 3V Battery CR2032 Analog display • P5102-008W/002W is wireless data transfering DIAL TEST INDICATOR • Meet DIN2270 or BS2795 • Satin-chrome finish brass body, anti magnetic • Jeweled bearing, shock-proof • Interchangeable carbide contact point, diameter 2mm, supplied with wrench • With two holding stems: metric 6mm and 8mm, • Packed in plastic box FEATURES: Graduation mm Range mm Bezel diameter DIAL TEST INDICATOR • Meet DIN2270 or BS2795 • Satin-chrome finish brass body, anti magnetic • Jeweled bearing, shock-proof • Interchangeable carbide contact point, diameter 2mm supplied with wrench • With two holding stems: metric 6mm and 8mm • Packed in plastic box FEATURES: Remarks 0.001mm/0.00005" P5102-008 0-0.8/0-0.03" 0.013mm Reading mm Accuracy mm Probe L mm 15mm unit: mm Graduation mm Range mm Bezel diameter Remarks P5106-08-30 P5106-08-40 P5106-08-30R P5106-08-40R P5106-0.03-1 P5106-0.03-2 P5106-0.03-1R P5106-0.03-2R 0-0.8mm 0-0.8mm 0-0.8mm 0-0.8mm 0-0.03” 0-0.03” 0-0.03” 0-0.03” 0.01mm 0.01mm 0.01mm 0.01mm 0.0005” 0.0005” 0.0005” 0.0005” 30mm 40mm 30mm 40mm 1.18” 1.48” 1.18” 1.48” -- -- Ruby head Ruby head -- -- Ruby head Ruby head P5107-02-30 P5107-02-40 P5107-008-1 P5107-008-2 P5108-012-30 P5108-012-40 0～0.2mm 0～0.2mm 0～0.008in 0～0.008in 0～0.14mm 0～0.14mm 0.002mm 0.002mm 0.0001in 0.0001in 0.001mm 0.001mm 30mm 40mm 1.6i 1.57in 30mm 40mm -- -- -- -- - - Unit: mm unit: mm 0.001mm/0.00005" P5102-002 0-0.2/0-0.008" 0.005mm 15mm Model No. Model No. Model No. 0.001mm/0.00005" P5102-008W 0-0.8/0-0.03" 0.013mm 15mm 0.001mm/0.00005" P5102-002W 0-0.2/0-0.008" 0.005mm 15mm

Ürün grubu	Komparatörler ve Ölçüm Saatleri
Katalog modelleri	IP65 DIGITAL TEST INDICATOR; DIAL TEST INDICATOR
Katalog	SCHWYZ KOMPORATÖR VE ÇEŞİTLERİ 2025-27
Katalog sayfası	16
