Kaynak Mastarı WG-6 ve İlgili Modeller

Kaynak Mastarı WG-6 ve İlgili Modeller, Kaynak dikişi, pah, boşluk, kalınlık ve profil kontrolleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

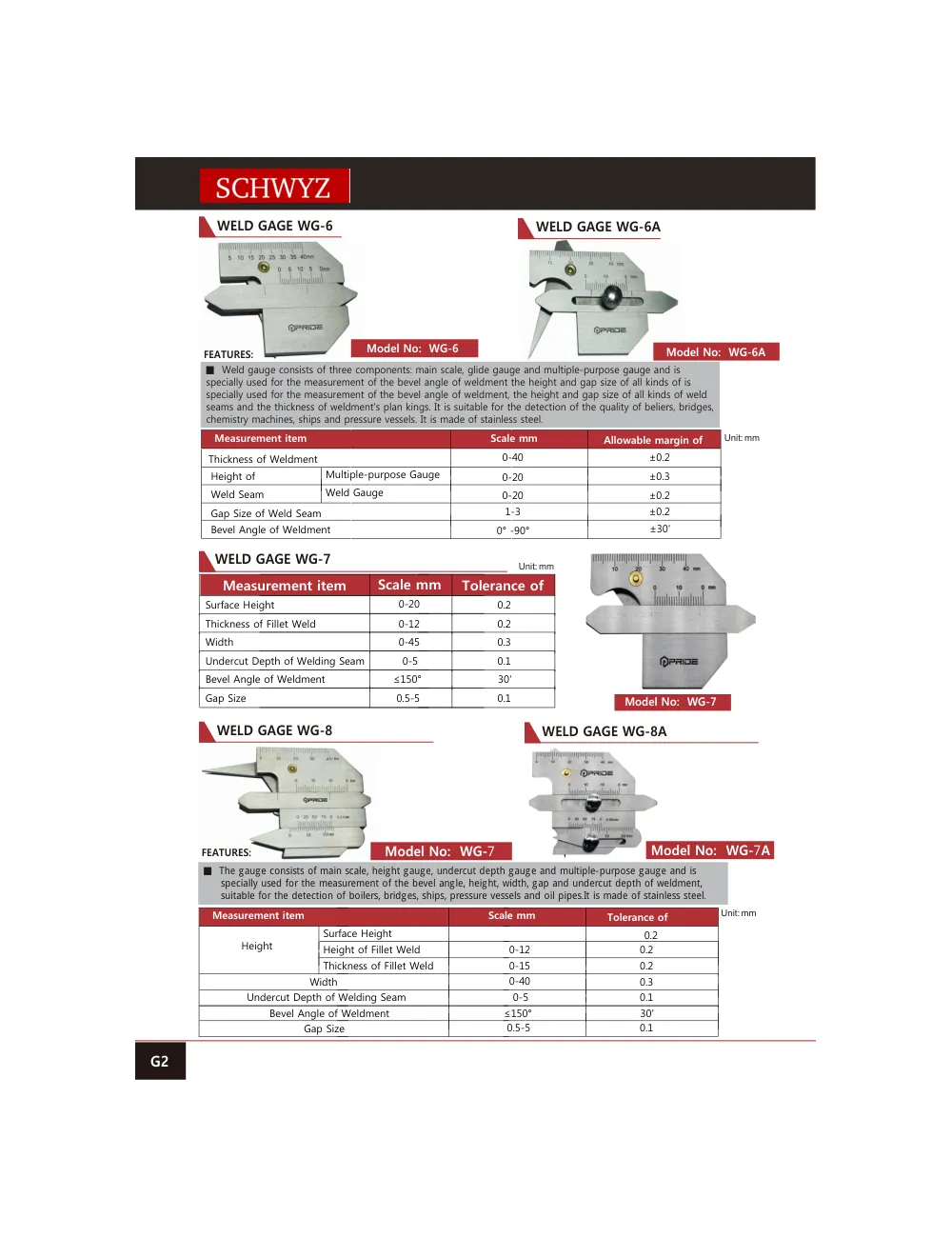

Katalog teknik bilgileri:
WELD GAGE WG-6 WELD GAGE WG-7 Unit: mm Unit: mm • Weld gauge consists of three components: main scale, glide gauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle of weldment the height and gap size of all kinds of is specially used for the measurement of the bevel angle of weldment, the height and gap size of all kinds of weld seams and the thickness of weldment's plan kings. It is suitable for the detection of the quality of beliers, bridges, chemistry machines, ships and pressure vessels. It is made of stainless steel. Measurement item Scale mm Model No: WG-6A Allowable margin of Thickness of Weldment Height of Weld Seam Gap Size of Weld Seam Bevel Angle of Weldment Multiple-purpose Gauge Weld Gauge 0-40 ±0.2 0-20 ±0.3 0-20 ±0.2 1-3 ±0.2 0° -90° ±30' Measurement item Scale mm Tolerance of Surface Height 0-20 0.2 Thickness of Fillet Weld 0-12 0.2 Width 0-45 0.3 Undercut Depth of Welding Seam 0-5 0.1 Bevel Angle of Weldment ≤150° 30' Gap Size 0.5-5 0.1 Model No: WG-7 Model No: WG-6 WELD GAGE WG-6A WELD GAGE WG-8 Unit: mm • The gauge consists of main scale, height gauge, undercut depth gauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.It is made of stainless steel. Measurement item Scale mm Model No: WG-7 Tolerance of Height Surface Height Height of Fillet Weld Thickness of Fillet Weld Width Undercut Depth of Welding Seam Bevel Angle of Weldment Gap Size 0-12 0.2 0-15 0.2 0-40 0.3 0-5 0.1 ≤150° 30' 0.5-5 0.1 0.2 WELD GAGE WG-8A Model No: WG-7A G2 FEATURES: FEATURES:

Ürün grubu	Kaynak Ölçüm Cihazları
Katalog modelleri	WELD GAGE WG-6; WELD GAGE WG-6A; Model No: WG-6; Model No: WG-6A; WELD GAGE WG-7; Scale mm; Measurement item; Tolerance of
Katalog	SCHWYZ KAYNAK ÖLÇERLER2025-27
Katalog sayfası	3
