MANUAL WHEEL Test Standı FT-130 ve İlgili Modeller

MANUAL WHEEL Test Standı FT-130 ve İlgili Modeller, Basma, çekme, tork, yay ve malzeme dayanım testleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

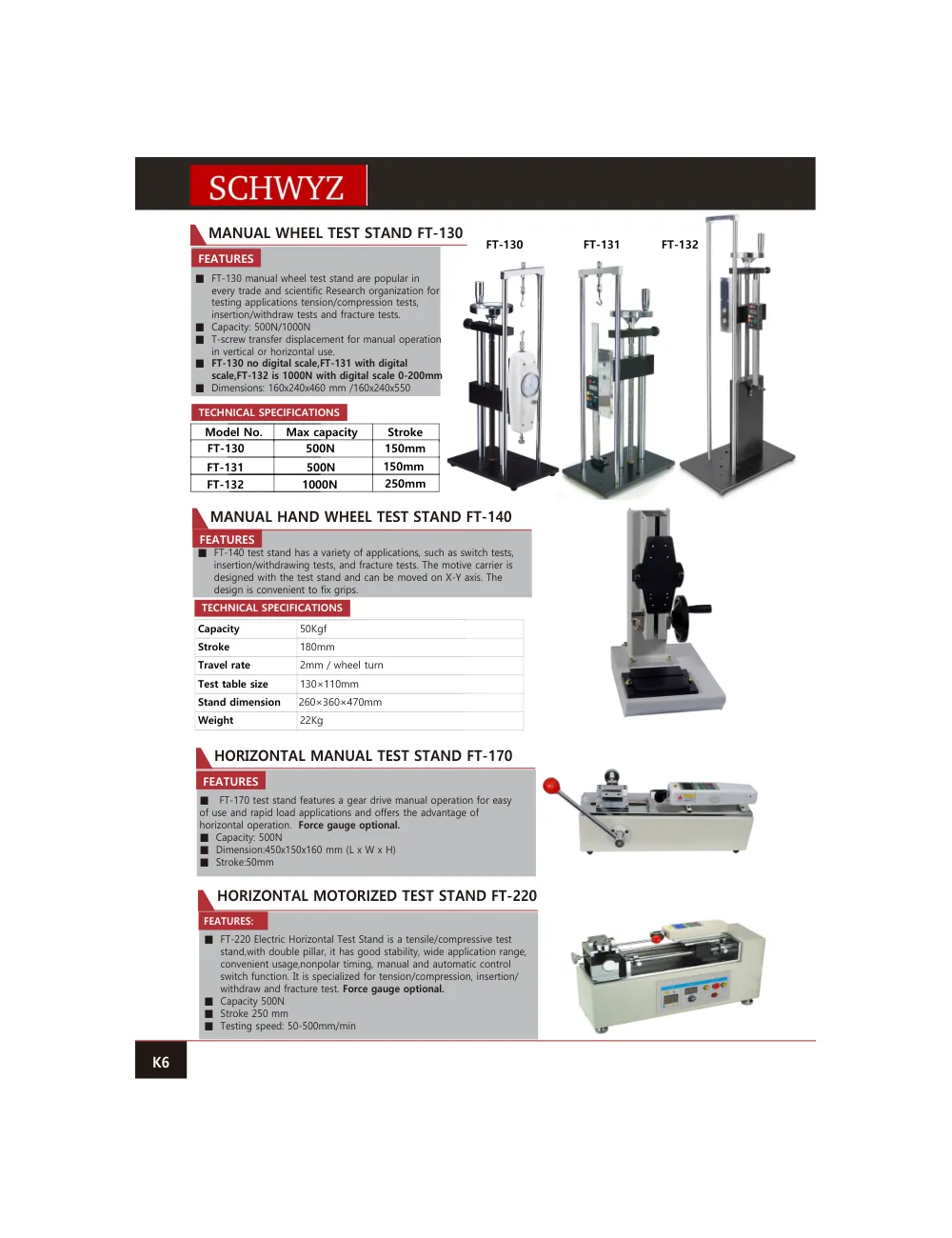

K6 MANUAL WHEEL TEST STAND FT-130 • FT-130 manual wheel test stand are popular in every trade and scientific Research organization for testing applications tension/compression tests, insertion/withdraw tests and fracture tests. • Capacity: 500N/1000N • T-screw transfer displacement for manual operation in vertical or horizontal use. • FT-130 no digital scale,FT-131 with digital scale,FT-132 is 1000N with digital scale 0-200mm • Dimensions: 160x240x460 mm /160x240x550 MANUAL HAND WHEEL TEST STAND FT-140 • FT-140 test stand has a variety of applications, such as switch tests, insertion/withdrawing tests, and fracture tests. The motive carrier is designed with the test stand and can be moved on X-Y axis. The design is convenient to fix grips. TECHNICAL SPECIFICATIONS Capacity 50Kgf Stroke 180mm Travel rate 2mm／wheel turn Test table size 130×110mm Stand dimension 260×360×470mm Weight 22Kg HORIZONTAL MANUAL TEST STAND FT-170 FEATURES FEATURES • FT-170 test stand features a gear drive manual operation for easy of use and rapid load applications and offers the advantage of horizontal operation. Force gauge optional. • Capacity: 500N • Dimension:450x150x160 mm (L x W x H) • Stroke:50mm Model No. Max capacity FT-130 500N FT-131 500N Stroke 150mm 150mm TECHNICAL SPECIFICATIONS FT-132 1000N 250mm FT-130 FT-131 FT-132 • FT-220 Electric Horizontal Test Stand is a tensile/compressive test stand,with double pillar, it has good stability, wide application range, convenient usage,nonpolar timing, manual and automatic control switch function. It is specialized for tension/compression, insertion/ withdraw and fracture test. Force gauge optional. • Capacity 500N • Stroke 250 mm • Testing speed: 50-500mm/min HORIZONTAL MOTORIZED TEST STAND FT-220 FEATURES: FEATURES

Ürün grubu	Kuvvet ve Çekme Test Cihazları
Katalog modelleri	MANUAL WHEEL TEST STAND FT-130; Stroke; Max capacity; MANUAL HAND WHEEL TEST STAND FT-140; HORIZONTAL MANUAL TEST STAND FT-170; HORIZONTAL MOTORIZED TEST STAND FT- 22 0
Katalog	SCHWYZ KUVVET VE ÇEKME TEST CİHZALARI 2025-27
Katalog sayfası	7
