Hassas Block Terazi ve İlgili Modeller

Precision Block Level ve İlgili Modeller, Hassas açı ölçümü, hizalama ve geometrik kontrol uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

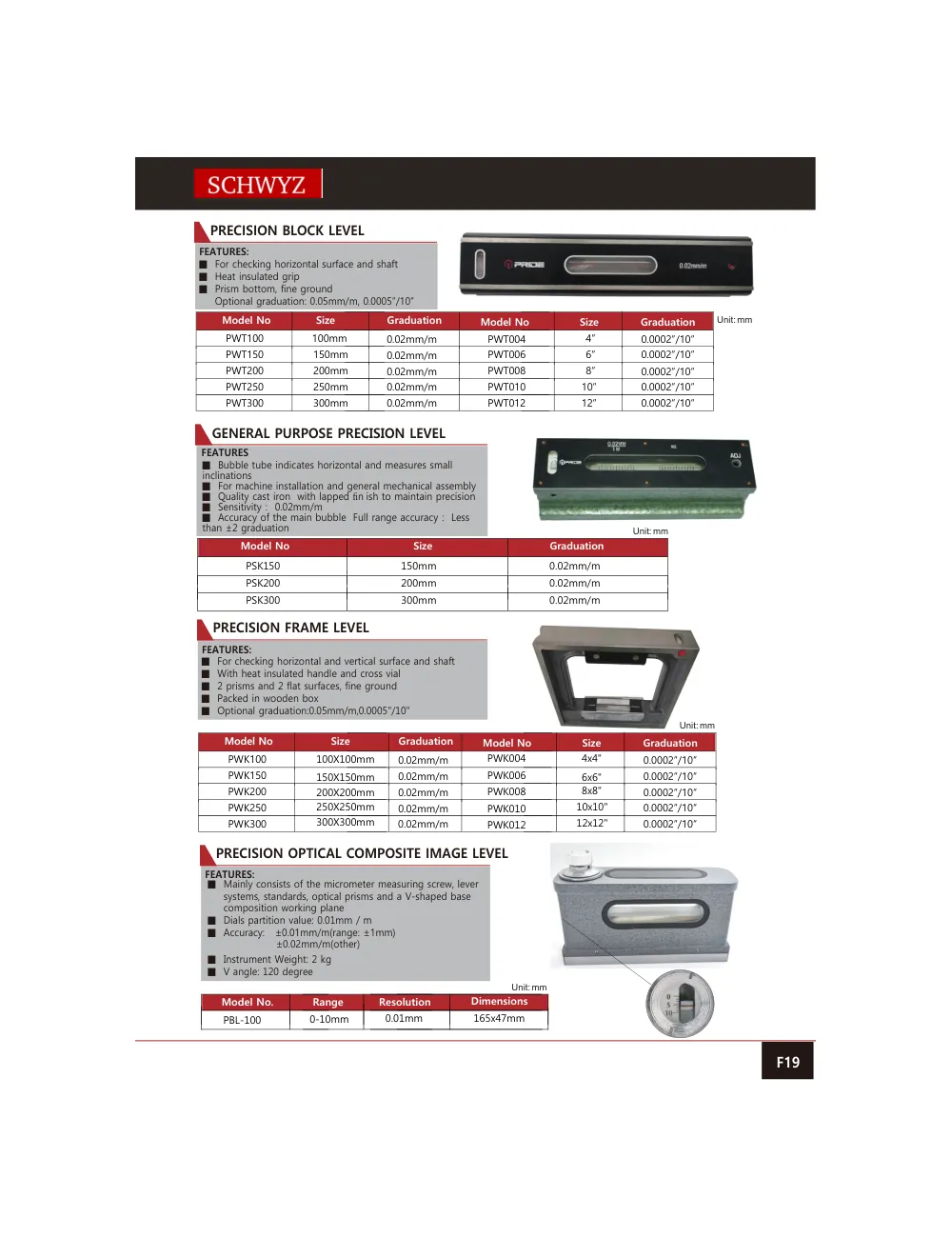

F19 PRECISION BLOCK LEVEL • For checking horizontal surface and shaft • Heat insulated grip • Prism bottom, fine ground Optional graduation: 0.05mm/m, 0.0005”/10” FEATURES: Unit: mm Model No Size Graduation PWT100 100mm 0.02mm/m PWT150 150mm 0.02mm/m PWT200 200mm 0.02mm/m PWT250 250mm 0.02mm/m PWT004 4” 0.0002”/10” PWT006 6” 0.0002”/10” PWT008 8” 0.0002”/10” PWT010 10” 0.0002”/10” Model No Size Graduation PWT300 300mm 0.02mm/m PWT012 12” 0.0002”/10” PRECISION FRAME LEVEL • For checking horizontal and vertical surface and shaft • With heat insulated handle and cross vial • 2 prisms and 2 flat surfaces, fine ground • Packed in wooden box • Optional graduation:0.05mm/m,0.0005"/10" FEATURES: PWK004 PWK006 PWK008 PWK010 100X100mm 150X150mm 200X200mm 250X250mm 4x4" 6x6" 8x8" 10x10" Unit: mm Model No Size Graduation PWK100 0.02mm/m PWK150 0.02mm/m PWK200 0.02mm/m PWK250 0.02mm/m 0.0002”/10” 0.0002”/10” 0.0002”/10” 0.0002”/10” Model No Size Graduation PWK012 300X300mm 12x12" PWK300 0.02mm/m 0.0002”/10” PRECISION OPTICAL COMPOSITE IMAGE LEVEL • Mainly consists of the micrometer measuring screw, lever systems, standards, optical prisms and a V-shaped base composition working plane • Dials partition value: 0.01mm / m • Accuracy: ±0.01mm/m(range: ±1mm) ±0.02mm/m(other) • Instrument Weight: 2 kg • V angle: 120 degree FEATURES: Unit: mm Model No. Range Resolution Dimensions PBL-100 0-10mm 0.01mm 165x47mm GENERAL PURPOSE PRECISION LEVEL FEATURES Unit: mm • Bubble tube indicates horizontal and measures small inclinations • For machine installation and general mechanical assembly • Quality cast iron with lapped fin ish to maintain precision • Sensitivity： 0.02mm/m • Accuracy of the main bubble Full range accuracy： Less than ±2 graduation Model No Size Graduation PSK150 150mm 0.02mm/m PSK200 200mm 0.02mm/m PSK300 300mm 0.02mm/m

Ürün grubu	Açı Ölçerler ve Gönyeler
Katalog modelleri	PRECISION BLOCK LEVEL; GENERAL PURPOSE PRECISION LEVEL; PRECISION FRAME LEVEL; PRECISION OPTICAL COMPOSITE IMAGE LEVEL
Katalog	SCHWYZ AÇI ÖLÇER ÇEŞİTLERİ 2025 -27
Katalog sayfası	20
