Video Microscope Vm-100 ve İlgili Modeller

Video Microscope Vm-100 ve İlgili Modeller, Profil projeksiyonu, görüntülü ölçüm ve koordinat ölçüm uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:
N13 VIDEO MICROSCOPE VM-100 • With high definition 0.7~4.5X parallel continue zoom lens, it it more convenient and fast to switch objective magnification; • With precision coarse and fine lifting system, ensure perfect focus and clear image; • With adjustable LED bottom and surface illumination, it can control brightness independently; • Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage; • Simple external interface: 12V power supply input and USB/ VGA video output, SD card hole to make installation simpler; • Multiple optional mobile control platform, ensure precision position measurement. unit: mm Optical Objective 0.7X~4.5X horizontal zoom lens Zoom ratio 6.5：1 0.5X C-mount Camera Adapter Camera Parameter 2 million pixel (1920*1080) Image Size:1/2.86” Frames Per Second：30fps Camera Function White Balance; Brightness Control; Digital Noise Reduction Photograph and Video Record VGA/USB Output, SD Card Storage OSD: Comprehensive digital UI design, Wireless USB 2.0 Mouse Operation Cross Line Picture Frozen,10X Digital Magnification Measuring Function Optional PC System and measuring software can measure image in the field of view Illumination Bottom: Adjustable LED Illumination Surface: Adjustable LED Illumination Microscope Stand Z-axis Travel: 150mm Coarse/Fine Lifting System Electrical Parameters AC90~240V；50~60HZ Dimension 290*280*400 mm Gross/Net Weight 7.0/4.7Kg Microscope Main Body VM-100 Power Adapter DC12V Mouse Wireless SD Card 8G Operation Manual/Warranty Card/ Certificate/Packing list VM-100 Electronic Magnification 8X~206X (16:9 21”Monitor) STANDARD DELIVERY TECHNICAL SPECIFICATION unit: mm APPLICATION Video Microscope is widely used in the inspection of electronic industry production line, printed circuit board, weld detects ( such as wrong printing, edge collapse,etc)during printed circuit component, PC Board, VFD, and the identification of printing grid and painting, etc. It can display the zoom out image on the screen and save, magnify and print. FEATURES

Ürün grubu	Optik ve Dokunmalı Ölçüm Sistemleri
Katalog modelleri	VIDEO MICROSCOPE VM-100; Video Microscope is widely used in the inspection of; electronic industry production line, printed circuit board,; weld detects ( such as wrong printing, edge; collapse,etc)during printed circuit component, PC Board,; VFD, and the identification of printing grid and painting,; etc. It can display the zoom out image on the screen; and save, magnify and print.

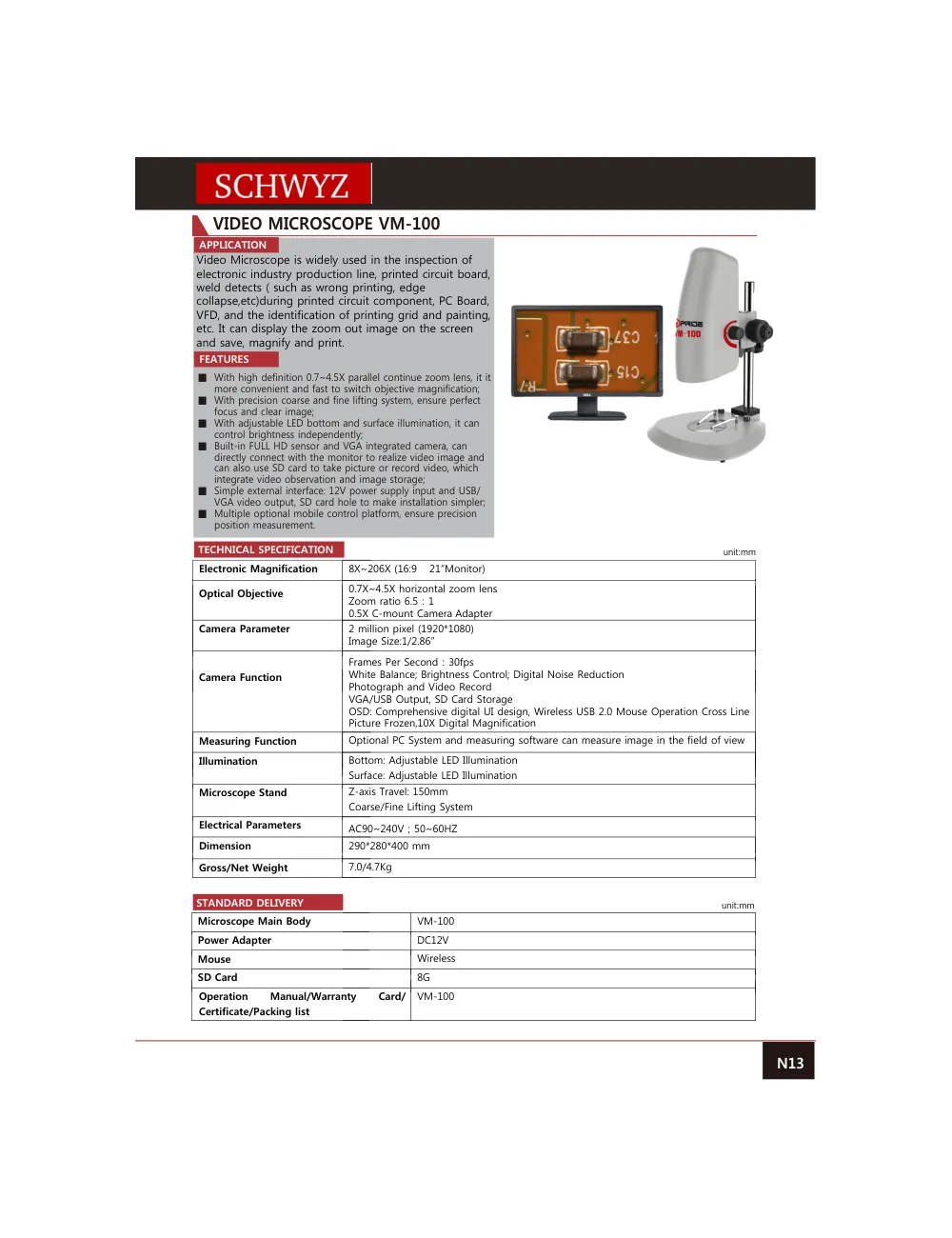

Katalog	SCHWYZ PROJEKSİYON VE DOKUNMA ÖLÇÜMCİHAZLARI 2025-27
Katalog sayfası	14
