72 Led Compact Four-Zone Microscope Ring Light ve İlgili Modeller, Profil projeksiyonu, görüntülü ölçüm ve koordinat ölçüm uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.
Katalog teknik bilgileri:

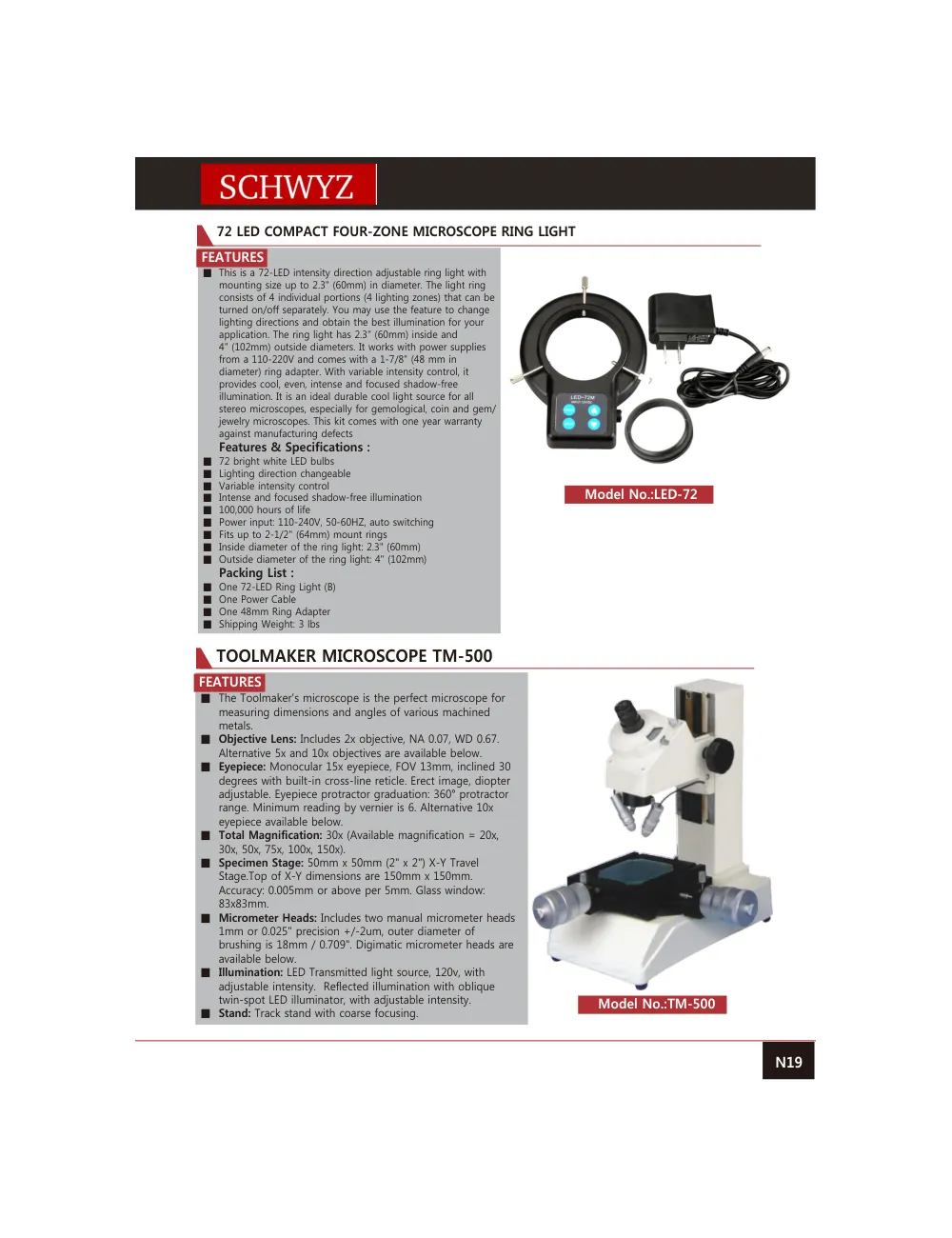

N19 72 LED COMPACT FOUR-ZONE MICROSCOPE RING LIGHT • This is a 72-LED intensity direction adjustable ring light with mounting size up to 2.3" (60mm) in diameter. The light ring consists of 4 individual portions (4 lighting zones) that can be turned on/off separately. You may use the feature to change lighting directions and obtain the best illumination for your application. The ring light has 2.3" (60mm) inside and 4" (102mm) outside diameters. It works with power supplies from a 110-220V and comes with a 1-7/8" (48 mm in diameter) ring adapter. With variable intensity control, it provides cool, even, intense and focused shadow-free illumination. It is an ideal durable cool light source for all stereo microscopes, especially for gemological, coin and gem/ jewelry microscopes. This kit comes with one year warranty against manufacturing defects Features & Specifications : • 72 bright white LED bulbs • Lighting direction changeable • Variable intensity control • Intense and focused shadow-free illumination • 100,000 hours of life • Power input: 110-240V, 50-60HZ, auto switching • Fits up to 2-1/2" (64mm) mount rings • Inside diameter of the ring light: 2.3" (60mm) • Outside diameter of the ring light: 4" (102mm) Packing List : • One 72-LED Ring Light (B) • One Power Cable • One 48mm Ring Adapter • Shipping Weight: 3 lbs FEATURES TOOLMAKER MICROSCOPE TM-500 • The Toolmaker's microscope is the perfect microscope for measuring dimensions and angles of various machined metals. • Objective Lens: Includes 2x objective, NA 0.07, WD 0.67. Alternative 5x and 10x objectives are available below. • Eyepiece: Monocular 15x eyepiece, FOV 13mm, inclined 30 degrees with built-in cross-line reticle. Erect image, diopter adjustable. Eyepiece protractor graduation: 360° protractor range. Minimum reading by vernier is 6. Alternative 10x eyepiece available below. • Total Magnification: 30x (Available magnification = 20x, 30x, 50x, 75x, 100x, 150x). • Specimen Stage: 50mm x 50mm (2" x 2") X-Y Travel Stage.Top of X-Y dimensions are 150mm x 150mm. Accuracy: 0.005mm or above per 5mm. Glass window: 83x83mm. • Micrometer Heads: Includes two manual micrometer heads 1mm or 0.025" precision +/-2um, outer diameter of brushing is 18mm / 0.709". Digimatic micrometer heads are available below. • Illumination: LED Transmitted light source, 120v, with adjustable intensity. Reflected illumination with oblique twin-spot LED illuminator, with adjustable intensity. • Stand: Track stand with coarse focusing. FEATURES Model No.:LED-72 Model No.:TM-500
| Ürün grubu |
Optik ve Dokunmalı Ölçüm Sistemleri |
| Katalog modelleri |
72 LED COMPACT FOUR-ZONE MICROSCOPE RING LIGHT; Features & Specifications :; Model No.: LED-72; Packing List :; TOOLMAKER MICROSCOPE TM-500; • The Toolmaker's microscope is the perfect microscope for; measuring dimensions and angles of various machined; metals. |
| Katalog |
SCHWYZ PROJEKSİYON VE DOKUNMA ÖLÇÜMCİHAZLARI 2025-27 |
| Katalog sayfası |
20 |
