P Ocket Measuring Microscope

P Ocket Measuring Microscope, Profil projeksiyonu, görüntülü ölçüm ve koordinat ölçüm uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:
N15 KDC RS@MC LD@RTQHMF LHBQNRBNOD 25x to 100x • Stand Microscope is a small size, lightweight and conveniently portable microscope. It is designed to cover the range in between the high-grade, heavily equipped microscopes and the various magnifiers 3x-30x). It can easily, speedily and accurately catch the subject to be examined with its bright and superior resolving power and smooth-working mechanism. This microscope is convenient for measuring the thickness, height or depth of subjects having different levels and for measuring the depth of items like print cylinders, printing plates and other similar applications. The precision made focusing ring, simplifies operation, and the attachable/detachable rubber eyepiece increases the ease in operation. A scale is built into the scale chamber above the focusing ring The lens barrel of the eyepiece is the visibility adjustment ring. First turn this ring and set it at the position where the scale can be seen clearly. Then turn the focusing ring refocus on the next level. By reading the scale engraved on the focusing ring and the main needle of the lens barrel, depths can be measured with the accuracy of 0.1mm (.004"). This scale can be easily interchanged according to use. Three kinds of scales-standard, for tooling, for printing are available. Stand Microscope is ideal for use in factories, inspection rooms and research laboratories. POCKET MEASURING MICROSCOPE • Pocket measuring microscope with reticle. The Reticle is cross hair with horizontal scale. To focus the microscope, hold it so that the notch at the tip of the acrylic cylinder of the microscope faces towards you, place the center of the object lens above the specimen and while tilting the cylinder forward and backward with your eye on the eye-piece lens, fix the cylinder and adjust to the best angle which can give the sharpest image. Model No. P2008-20 P2008-40 P2008-60 P2008-100 Magnification 20X 40X 60X 100X Field of View 3.30 mmø 2.00mmø 1.09mmø 0.84mmø Min. Scale Div. No. 24 = 0.05mm No. 26 = 0.002" No. 13 = 0.02mm No. 15 = 0.001" No. 34 = 0.01mm No. 36 = 0.0005" No. 44 = 0.005mm No. 46 = 0.0005" Measuring Range 3.0mm 1.6mm 1.0mm 0.8mm Working Distance 17.0mm 11.7mm 11.7mm 11.6mm Numerical Aperture 0.11 0.18 0.22 0.22 Focal Distance 19.8mm 14.9mm 9.9mm 9.9mm Size (mm) 41.5øx122 41.5øx122 41.5øx122 41.5øx122 Net Weight 83 g 83 g 83 g 88 g P2036-20 P2036-50 P2036-100 Magnification 25X 50X 100X Field of View 8° 6° 5.7° Measuring Length 3 mm 2 mm 1 mm Size (mm) 12.4 x 127 12.4 x 127 12.4 x 127 Net Weight 12 g 13 g 16 g P2036S-20 P2036S-50 Magnification 25X 50X Field of View 8° 6° Measuring Length 3 mm 0.05mm(0-3mm) 0.002"(0-0.12") 2 mm 0.02mm(0-1.6mm) 0.001"(0-0.0.6") Size (mm) 12.4 x 127 12.4 x 127 Net Weight 12 g 13 g Model 2036 without scales Model No. Model No. Model 2036S with scales FEATURES FEATURES

Ürün grubu	Optik ve Dokunmalı Ölçüm Sistemleri
Katalog modelleri	P OCKET MEASURING MICROSCOPE

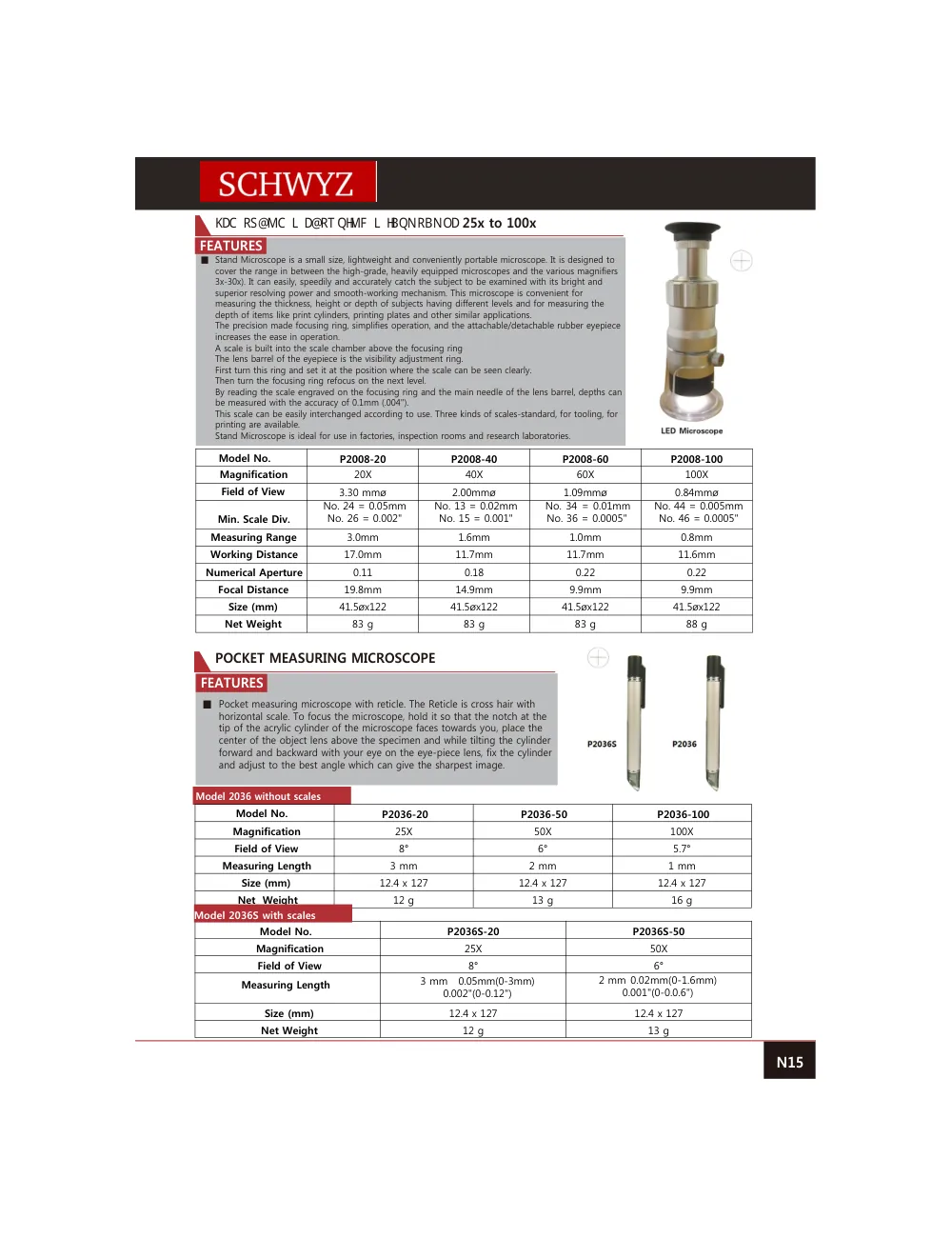

Katalog	SCHWYZ PROJEKSİYON VE DOKUNMA ÖLÇÜMCİHAZLARI 2025-27
Katalog sayfası	16
