Automatic Mounting Press Metmou 500 ve İlgili Modeller, Metalografik numune kesme, kalıplama, zımparalama, parlatma ve inceleme işlemleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

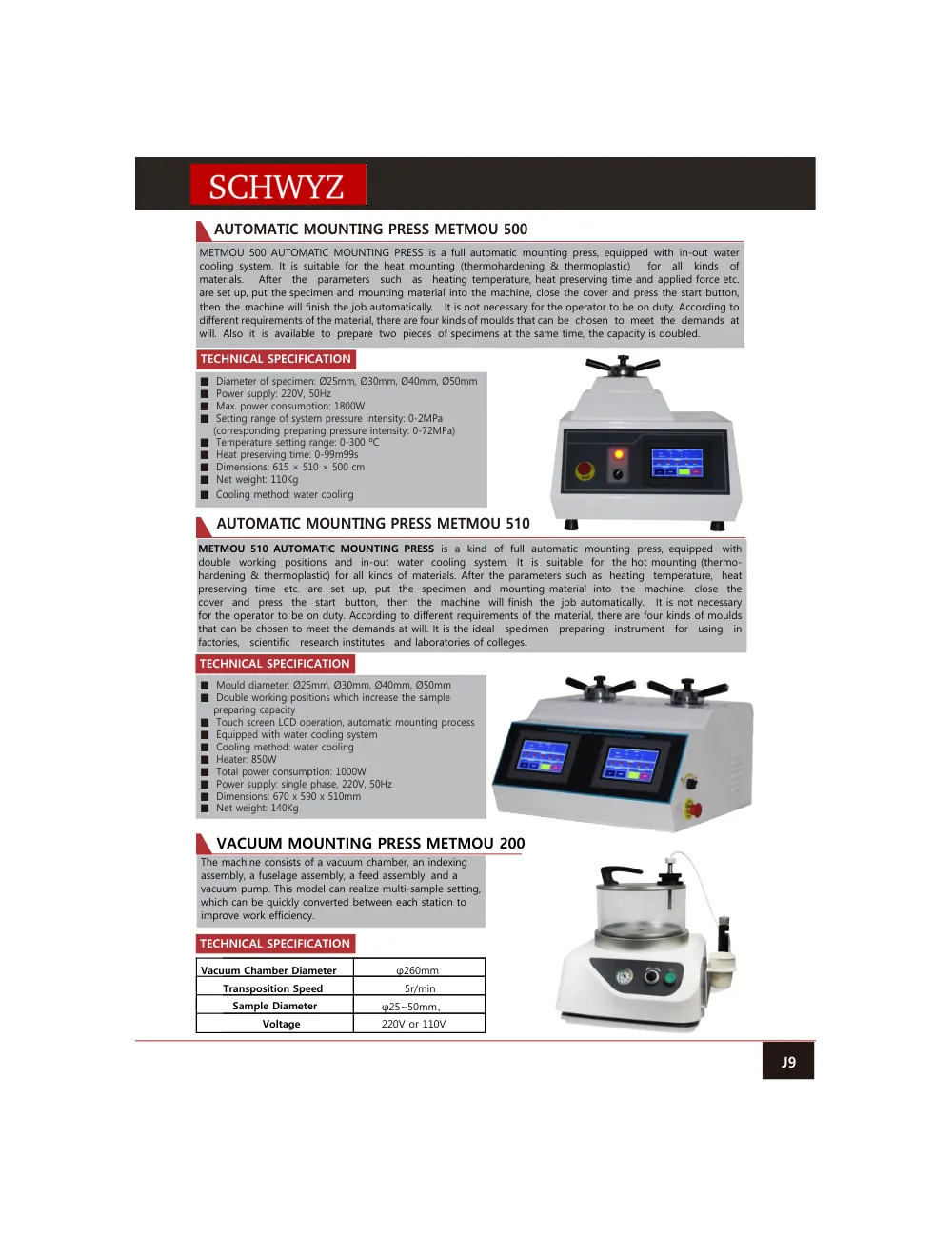

Katalog teknik bilgileri:
J9 AUTOMATIC MOUNTING PRESS METMOU 500 • Diameter of specimen: Ø25mm, Ø30mm, Ø40mm, Ø50mm • Power supply: 220V, 50Hz • Max. power consumption: 1800W • Setting range of system pressure intensity: 0-2MPa (corresponding preparing pressure intensity: 0-72MPa) • Temperature setting range: 0-300 ºC • Heat preserving time: 0-99m99s • Dimensions: 615 × 510 × 500 cm • Net weight: 110Kg • Cooling method: water cooling • Mould diameter: Ø25mm, Ø30mm, Ø40mm, Ø50mm • Double working positions which increase the sample preparing capacity • Touch screen LCD operation, automatic mounting process • Equipped with water cooling system • Cooling method: water cooling • Heater: 850W • Total power consumption: 1000W • Power supply: single phase, 220V, 50Hz • Dimensions: 670 x 590 x 510mm • Net weight: 140Kg Vacuum Chamber Diameter φ260mm Transposition Speed 5r/min Sample Diameter φ25~50mm、 Voltage 220V or 110V METMOU 500 AUTOMATIC MOUNTING PRESS is a full automatic mounting press, equipped with in-out water cooling system. It is suitable for the heat mounting (thermohardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time and applied force etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. Also it is available to prepare two pieces of specimens at the same time, the capacity is doubled. TECHNICAL SPECIFICATION METMOU 510 AUTOMATIC MOUNTING PRESS is a kind of full automatic mounting press, equipped with double working positions and in-out water cooling system. It is suitable for the hot mounting (thermo- hardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges. TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION AUTOMATIC MOUNTING PRESS METMOU 510 VACUUM MOUNTING PRESS METMOU 200 The machine consists of a vacuum chamber, an indexing assembly, a fuselage assembly, a feed assembly, and a vacuum pump. This model can realize multi-sample setting, which can be quickly converted between each station to improve work efficiency.
| Ürün grubu |
Metalografi Cihazları ve Sarf Malzemeleri |
| Katalog modelleri |
AUTOMATIC MOUNTING PRESS METMOU 500; AUTOMATIC MOUNTING PRESS METMOU 5 1 0; VACUUM MOUNTING PRESS METMOU 200 |
| Katalog |
SCHWYZ KESİCİ VE ÖĞÜTÜCÜ CİHAZ VE SARF MALZEMELERİ 2025-27 |
| Katalog sayfası |
10 |
