Mouting Press Metmou 300 ve İlgili Modeller

Mouting Press Metmou 300 ve İlgili Modeller, Metalografik numune kesme, kalıplama, zımparalama, parlatma ve inceleme işlemleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

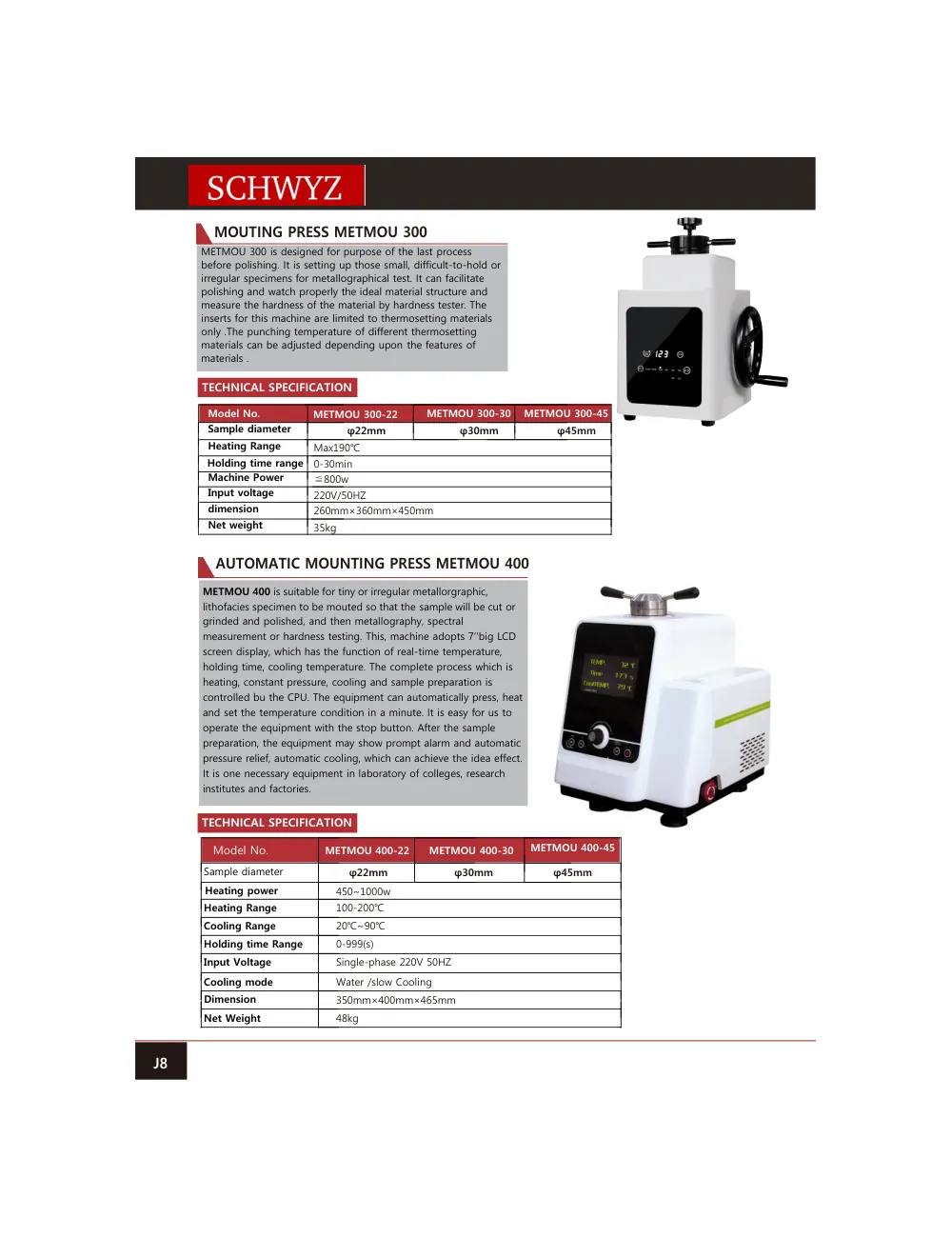

J8 MOUTING PRESS METMOU 300 AUTOMATIC MOUNTING PRESS METMOU 400 Model No. METMOU 300-22 METMOU 300-30 METMOU 300-45 Sample diameter φ22mm φ30mm φ45mm Heating Range Max190℃ 0-30min Machine Power ≦800w Input voltage 220V/50HZ dimension 260mm×360mm×450mm Net weight 35kg Model No. METMOU 400-22 METMOU 400-30 METMOU 400-45 Sample diameter φ22mm φ30mm φ45mm Heating power 450~1000w Heating Range 100-200℃ Cooling Range 20℃~90℃ Holding time Range 0-999(s) Input Voltage Single-phase 220V 50HZ Cooling mode Water /slow Cooling Dimension 350mm×400mm×465mm Net Weight 48kg TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION METMOU 300 is designed for purpose of the last process before polishing. It is setting up those small, difficult-to-hold or irregular specimens for metallographical test. It can facilitate polishing and watch properly the ideal material structure and measure the hardness of the material by hardness tester. The inserts for this machine are limited to thermosetting materials only .The punching temperature of different thermosetting materials can be adjusted depending upon the features of materials . Holding time range METMOU 400 is suitable for tiny or irregular metallorgraphic, lithofacies specimen to be mouted so that the sample will be cut or grinded and polished, and then metallography, spectral measurement or hardness testing. This, machine adopts 7’’big LCD screen display, which has the function of real-time temperature, holding time, cooling temperature. The complete process which is heating, constant pressure, cooling and sample preparation is controlled bu the CPU. The equipment can automatically press, heat and set the temperature condition in a minute. It is easy for us to operate the equipment with the stop button. After the sample preparation, the equipment may show prompt alarm and automatic pressure relief, automatic cooling, which can achieve the idea effect. It is one necessary equipment in laboratory of colleges, research institutes and factories.

Ürün grubu	Metalografi Cihazları ve Sarf Malzemeleri
Katalog modelleri	MOUTING PRESS METMOU 300; AUTOMATIC MOUNTING PRESS METMOU 400
Katalog	SCHWYZ KESİCİ VE ÖĞÜTÜCÜ CİHAZ VE SARF MALZEMELERİ 2025-27
Katalog sayfası	9
