DIAL TENSION Mastar ve İlgili Modeller

DIAL TENSION Mastar ve İlgili Modeller, Basma, çekme, tork, yay ve malzeme dayanım testleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

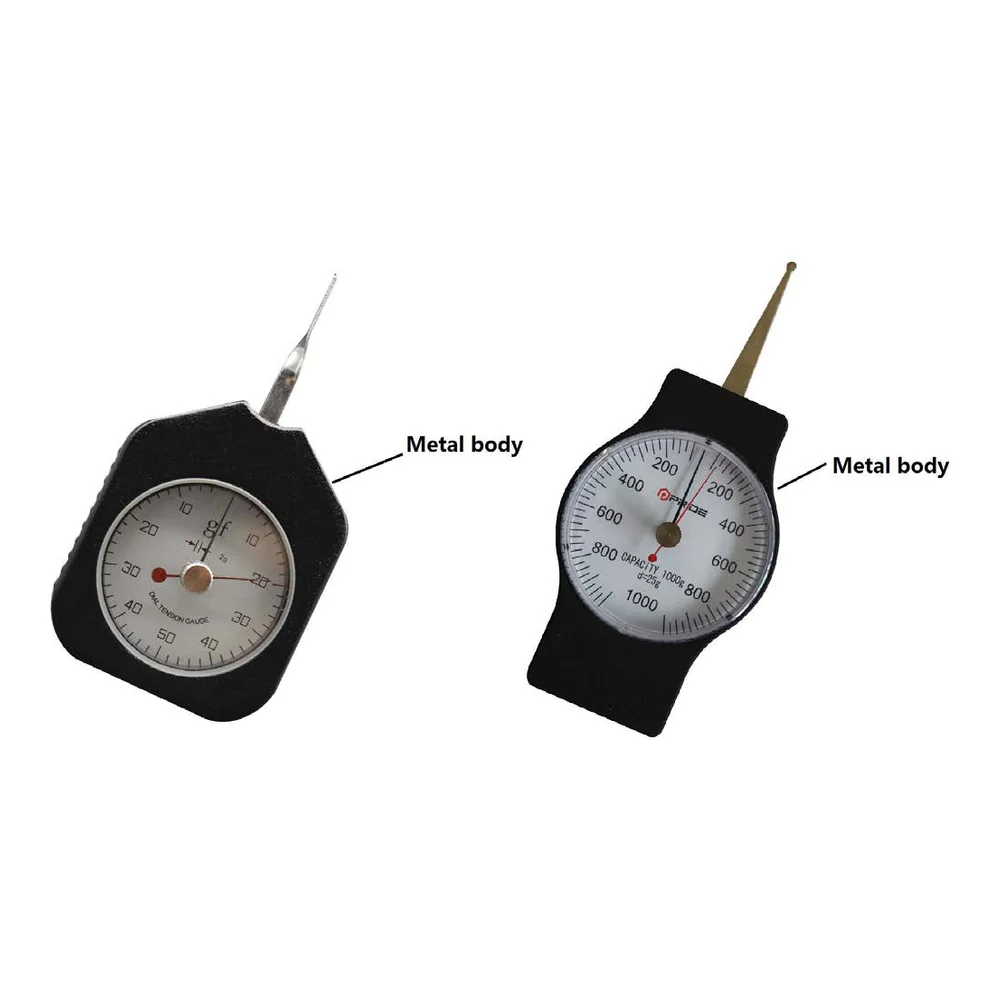

K23 FEATURES: DIAL TENSION GAGE • The Dial Tension Gauge is applied to the test of the contact point pressure of relay,electronic swith and mini switch etc., and the pressure, and the pressure ,pulling force of other accurate appliances. • Dial tension gage is the handy measuring instrument from 5g o 4000g,vailable in different models and wide usages • Tip Configuration: Flat tip for line contact. • Tension / Compression: Reads both clockwise and counterclockwise. • Peak Force Pointer: Holds maximum force reading - avialable with most models. • Calibration: Small hole in flat tip permits accuracy checks with test weights. • Accuracy: Accuracy: ±2% of full scale unit: g Model No. Measuring range Graduation (Gram) Accuracy Starting size DTG-10 2-10g 0.2g ±2% 1g DTG-30 5 - 30g 1g ±2% 3g DTG-50 10-50g 1g ±2% 5g DTG-100 20 - 100g 2g ±2% 10g DTG-150 25 - 150g 5g ±2% 15g DTG-300 50-300g 10g ±2% 30g DTG-500 100-500g 10g ±2% 50g DTG-1000 200-1000 25g ±2% 100g DTG-2000 500-2000 50g ±2% 250g DTG-4000 1000-4000 100g ±2% 700g Model No. Measuring range Graduation Accuracy Starting size DTN-0.1 0.02N-0.1N 0.002N ±2% 0.01N DTN-0.15 0.025N-0.15N 0.005N ±2% 0.015N DTN-1 0.2N-1N 0.02N ±2% 0.1N DTN-1.5 0.25N-1.5N 0.05N ±2% 0.15N DTN-3 0.5N-3N 0.1N ±2% 0.3N DTN-5 1N-5N 0.1N ±2% 0.5N unit: N DTG-50 DTG-1000 TECHNICAL SPECIFICATIONS

Ürün grubu	Kuvvet ve Çekme Test Cihazları
Katalog modelleri	DIAL TENSION GAGE; mini switch etc., and the pressure, and the pressure ,pulling force of other accurate appliances.; wide usages; • Tip Configuration: Flat tip for line contact.; • Tension / Compression: Reads both clockwise and counterclockwise.; • Peak Force Pointer: Holds maximum force reading - avialable with most models.; • Calibration: Small hole in flat tip permits accuracy checks with tes
Katalog	SCHWYZ KUVVET VE ÇEKME TEST CİHZALARI 2025-27
Katalog sayfası	24
