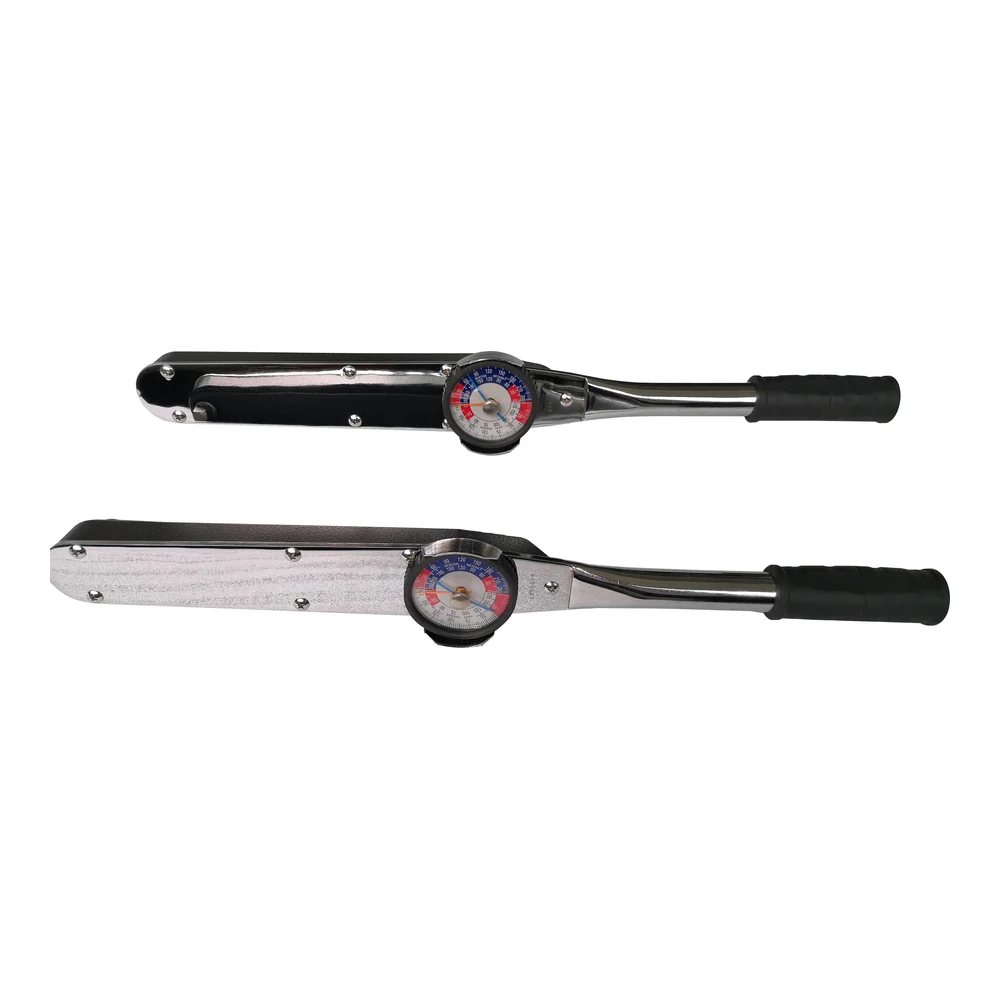

Dial Tork Anahtarı Dual Type ve İlgili Modeller

Dial Torque Wrench Dual Type ve İlgili Modeller, Basma, çekme, tork, yay ve malzeme dayanım testleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

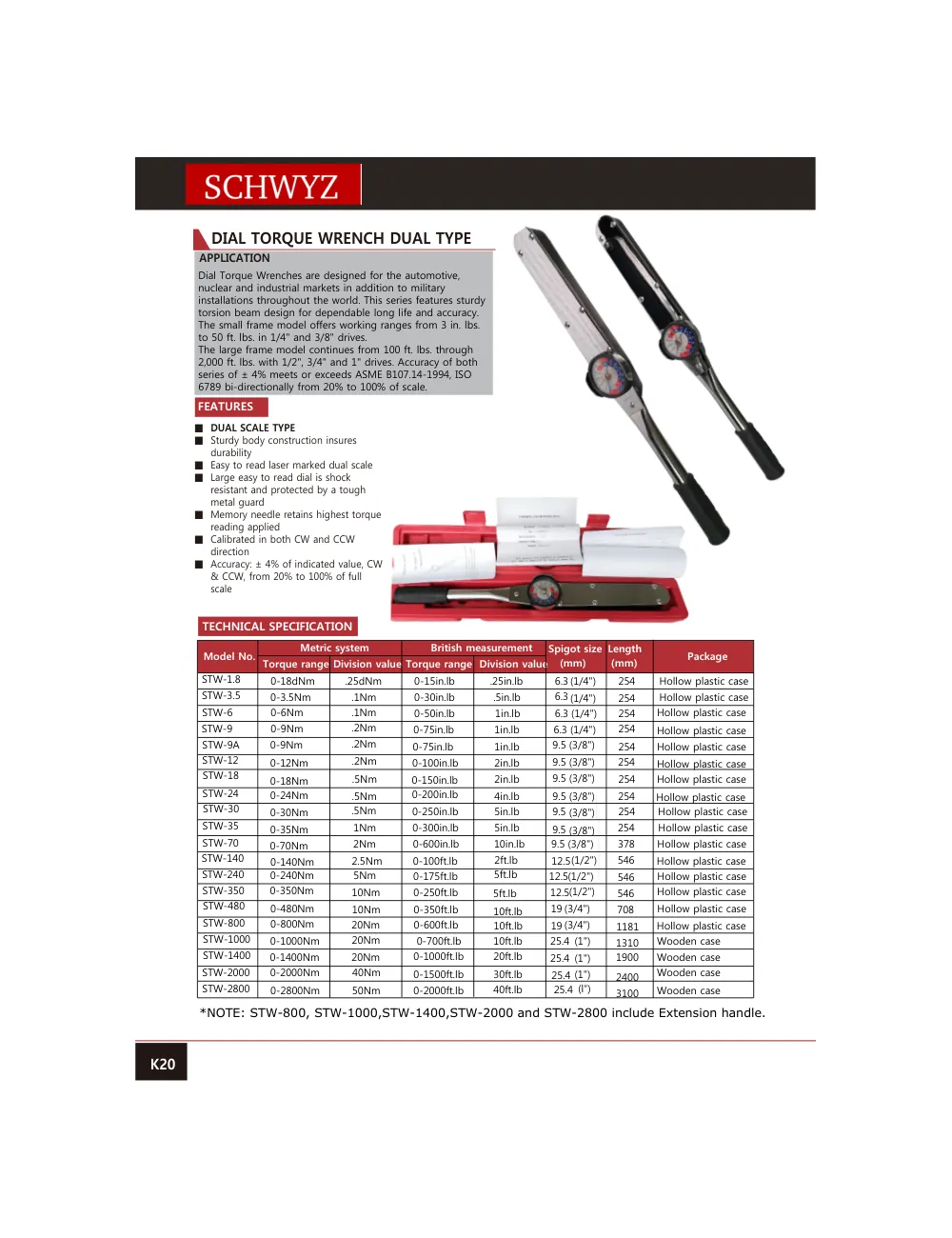

Katalog teknik bilgileri:
K20 APPLICATION DIAL TORQUE WRENCH DUAL TYPE • DUAL SCALE TYPE • Sturdy body construction insures durability • Easy to read laser marked dual scale • Large easy to read dial is shock resistant and protected by a tough metal guard • Memory needle retains highest torque reading applied • Calibrated in both CW and CCW direction • Accuracy: ± 4% of indicated value, CW & CCW, from 20% to 100% of full scale Model No. Metric system British measurement Spigot size (mm) Length (mm) Package Torque range Division value Torque range Division value 0-18dNm .25dNm 0-15in.lb .25in.lb 6.3 (1/4") 254 Hollow plastic case 0-3.5Nm .1Nm 0-30in.lb .5in.lb 6.3 (1/4") 254 Hollow plastic case 0-6Nm .1Nm 0-50in.lb 1in.lb 6.3 (1/4") 254 Hollow plastic case 0-9Nm .2Nm 0-75in.lb 1in.lb 6.3 (1/4") 254 Hollow plastic case 0-9Nm .2Nm 0-75in.lb 1in.lb 9.5 (3/8") 254 Hollow plastic case 0-12Nm .2Nm 0-100in.lb 2in.lb 9.5 (3/8") 254 Hollow plastic case 0-18Nm .5Nm 0-150in.lb 2in.lb 9.5 (3/8") 254 0-24Nm .5Nm 0-200in.lb 4in.lb 9.5 (3/8") 254 Hollow plastic case 0-30Nm .5Nm 0-250in.lb 5in.lb 9.5 (3/8") 254 Hollow plastic case 0-35Nm 1Nm 0-300in.lb 5in.lb 9.5 (3/8") 254 Hollow plastic case 0-70Nm 2Nm 0-600in.lb 10in.lb 9.5 (3/8") 378 Hollow plastic case 0-140Nm 2.5Nm 0-100ft.lb 2ft.lb 12.5 (1/2") 546 Hollow plastic case 0-240Nm 5Nm 0-175ft.lb 5ft.lb 12.5 (1/2") 546 Hollow plastic case 0-350Nm 10Nm 0-250ft.lb 5ft.lb 12.5 (1/2") 546 Hollow plastic case 0-480Nm 10Nm 0-350ft.lb 10ft.lb 19 (3/4") 708 Hollow plastic case 0-800Nm 20Nm 0-600ft.lb 10ft.lb 19 (3/4") 1181 Hollow plastic case 0-1000Nm 20Nm 0-700ft.lb 10ft.lb 25.4 (1") 1310 Wooden case 0-1400Nm 20Nm 0-1000ft.lb 20ft.lb 25.4 (1") 1900 Wooden case 0-2000Nm 40Nm 0-1500ft.lb 30ft.lb 25.4 (1") 2400 Wooden case 0-2800Nm 50Nm 0-2000ft.lb 40ft.lb 25.4 (l″) 3100 Wooden case STW-1.8 STW-3.5 STW-6 STW-9 STW-9A STW-12 STW-18 STW-24 STW-30 STW-35 STW-70 STW-140 STW-240 STW-350 STW-480 STW-800 STW-1000 STW-1400 STW-2000 STW-2800 Hollow plastic case Dial Torque Wrenches are designed for the automotive, nuclear and industrial markets in addition to military installations throughout the world. This series features sturdy torsion beam design for dependable long life and accuracy. The small frame model offers working ranges from 3 in. lbs. to 50 ft. lbs. in 1/4" and 3/8" drives. The large frame model continues from 100 ft. lbs. through 2,000 ft. lbs. with 1/2", 3/4" and 1" drives. Accuracy of both series of ± 4% meets or exceeds ASME B107.14-1994, ISO 6789 bi-directionally from 20% to 100% of scale. TECHNICAL SPECIFICATION *NOTE: STW-800, STW-1000,STW-1400,STW-2000 and STW-2800 include Extension handle. FEATURES

Ürün grubu	Kuvvet ve Çekme Test Cihazları
Katalog modelleri	DIAL TORQUE WRENCH DUAL TYPE; *NOTE: STW-800, STW-1000,STW-1400,STW-2000 and STW-2800 include Extension handle.
Katalog	SCHWYZ KUVVET VE ÇEKME TEST CİHZALARI 2025-27
Katalog sayfası	21
