DIGITAL THREE POINT INTERNAL Mikrometre ve İlgili Modeller, Dış, iç, derinlik ve özel profil ölçümlerinde yüksek hassasiyet için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

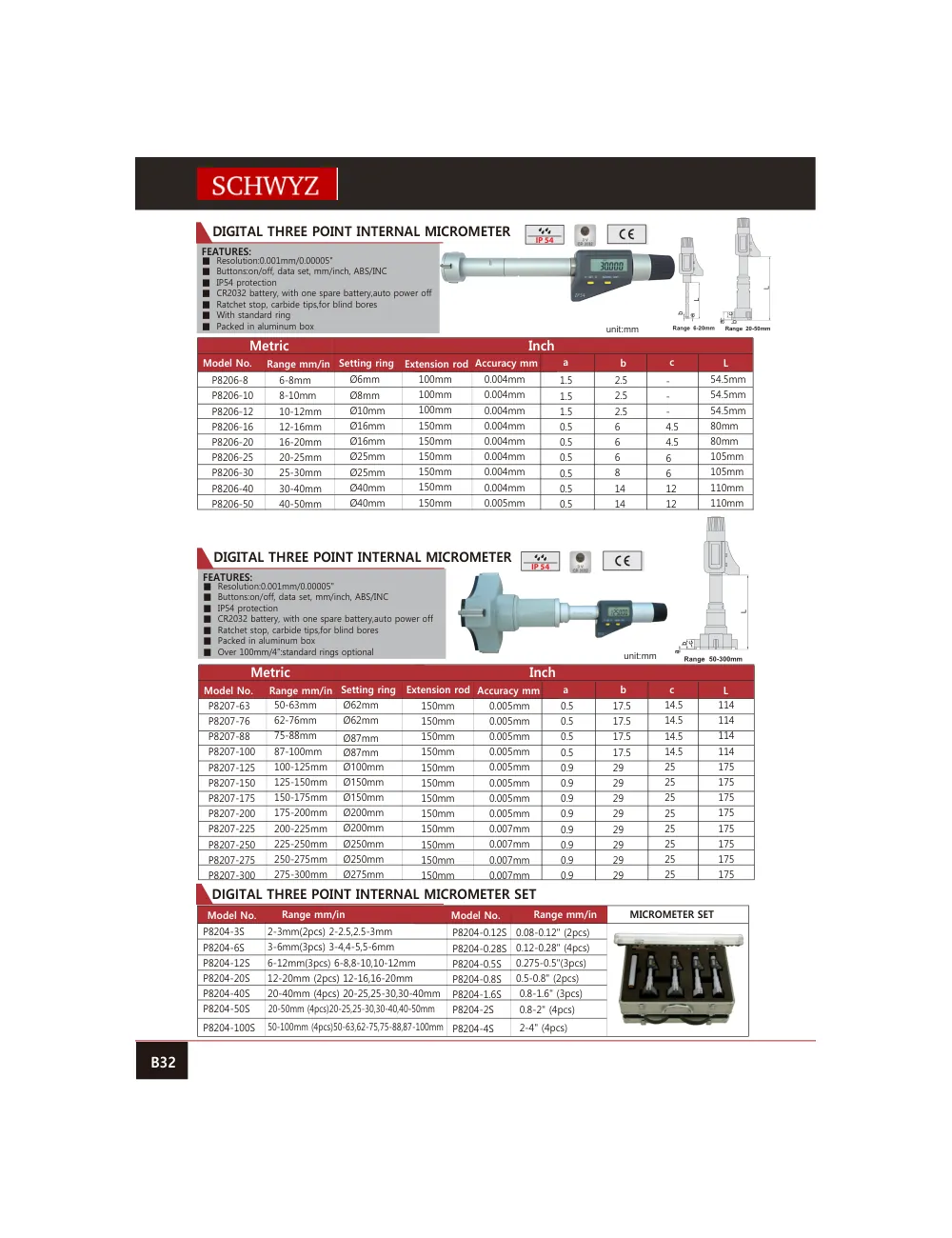

Katalog teknik bilgileri:
B32 DIGITAL THREE POINT INTERNAL MICROMETER FEATURES: • Resolution:0.001mm/0.00005" • Buttons:on/off, data set, mm/inch, ABS/INC • IP54 protection • CR2032 battery, with one spare battery,auto power off • Ratchet stop, carbide tips,for blind bores • With standard ring • Packed in aluminum box unit: mm Range mm/in Model No. Setting ring Metric Inch Accuracy mm a Extension rod DIGITAL THREE POINT INTERNAL MICROMETER FEATURES: • Resolution:0.001mm/0.00005" • Buttons:on/off, data set, mm/inch, ABS/INC • IP54 protection • CR2032 battery, with one spare battery,auto power off • Ratchet stop, carbide tips,for blind bores • Packed in aluminum box • Over 100mm/4”:standard rings optional unit: mm Range mm/in Model No. Metric Inch Accuracy mm P8206-8 P8206-10 P8206-12 P8206-16 P8206-20 P8206-25 P8206-30 P8206-40 P8206-50 6-8mm 8-10mm 10-12mm 12-16mm 16-20mm 20-25mm 25-30mm 30-40mm 40-50mm Ø6mm Ø8mm Ø10mm Ø16mm Ø16mm Ø25mm Ø25mm Ø40mm Ø40mm 100mm 100mm 100mm 150mm 150mm 150mm 150mm 150mm 150mm 0.004mm 0.004mm 0.004mm 0.004mm 0.004mm 0.004mm 0.004mm 0.004mm 0.005mm P8207-63 P8207-76 P8207-88 P8207-100 P8207-125 P8207-150 P8207-175 P8207-200 P8207-225 P8207-250 P8207-275 P8207-300 50-63mm 62-76mm 75-88mm 87-100mm 100-125mm 125-150mm 150-175mm 175-200mm 200-225mm 225-250mm 250-275mm 275-300mm Ø62mm Ø62mm Ø87mm Ø87mm Ø100mm Ø150mm Ø150mm Ø200mm Ø200mm Ø250mm Ø250mm Ø275mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.007mm 0.007mm 0.007mm 0.007mm Extension rod Range mm/in Model No. Range mm/in Model No. P8204-3S P8204-6S P8204-12S P8204-20S P8204-40S P8204-50S P8204-100S 2-3mm(2pcs) 2-2.5,2.5-3mm 3-6mm(3pcs) 3-4,4-5,5-6mm 6-12mm(3pcs) 6-8,8-10,10-12mm 12-20mm (2pcs) 12-16,16-20mm 20-40mm (4pcs) 20-25,25-30,30-40mm 20-50mm (4pcs)20-25,25-30,30-40,40-50mm 50-100mm (4pcs)50-63,62-75,75-88,87-100mm P8204-0.12S P8204-0.28S P8204-0.5S P8204-0.8S P8204-1.6S P8204-2S P8204-4S 0.08-0.12" (2pcs) 0.12-0.28" (4pcs) 0.275-0.5"(3pcs) 0.5-0.8" (2pcs) 0.8-1.6" (3pcs) 0.8-2" (4pcs) 2-4" (4pcs) MICROMETER SET b c L 1.5 1.5 1.5 0.5 0.5 0.5 0.5 0.5 0.5 2.5 2.5 2.5 6 6 6 8 14 14 - - - 4.5 4.5 6 6 12 12 54.5mm 54.5mm 54.5mm 80mm 80mm 105mm 105mm 110mm 110mm Setting ring a b c L 0.5 0.5 0.5 0.5 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 17.5 17.5 17.5 17.5 29 29 29 29 29 29 29 29 14.5 14.5 14.5 14.5 25 25 25 25 25 25 25 25 114 114 114 114 175 175 175 175 175 175 175 175 IP 54 IP 54 Range 6-20mm L b a Range 20-50mm L c a b DIGITAL THREE POINT INTERNAL MICROMETER SET Range 50-300mm c b a L
| Ürün grubu |
Mikrometreler |
| Katalog modelleri |
DIGITAL THREE POINT INTERNAL MICROMETER; Metric; DIGITAL THREE POINT INTERNAL MICROMETER SET |
| Katalog |
SCHWYZ MİCROMETRE KATALOĞU 2025-27 |
| Katalog sayfası |
32 |
