PISTOL-GRIP THREE-POINT BORE Mastar ve İlgili Modeller

PISTOL-GRIP THREE-POINT BORE Mastar ve İlgili Modeller, Dış, iç, derinlik ve özel profil ölçümlerinde yüksek hassasiyet için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

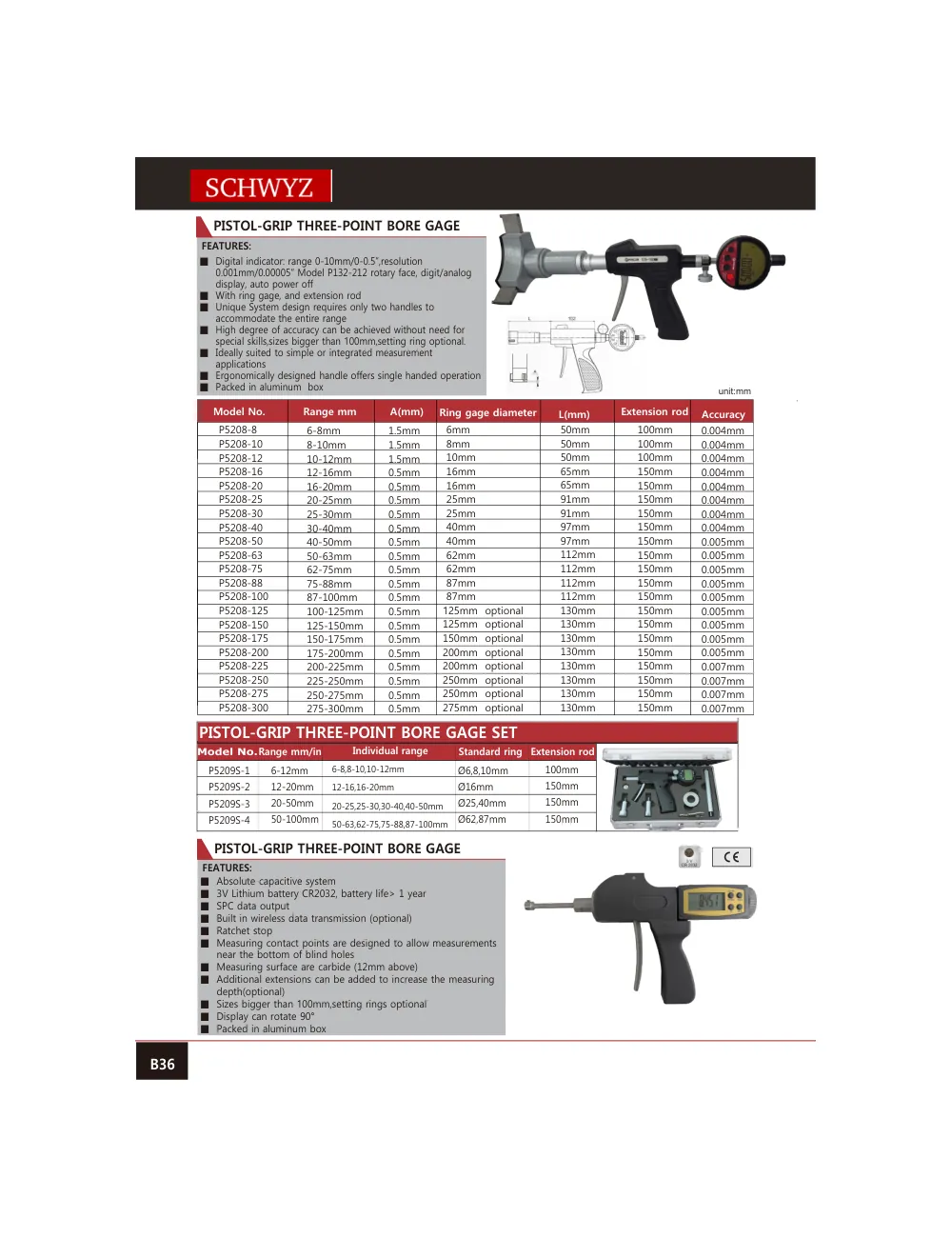

B36 PISTOL-GRIP THREE-POINT BORE GAGE FEATURES: • Digital indicator: range 0-10mm/0-0.5”,resolution 0.001mm/0.00005” Model P132-212 rotary face, digit/analog display, auto power off • With ring gage, and extension rod • Unique System design requires only two handles to accommodate the entire range • High degree of accuracy can be achieved without need for special skills,sizes bigger than 100mm,setting ring optional. • Ideally suited to simple or integrated measurement applications • Ergonomically designed handle offers single handed operation • Packed in aluminum box Model No. Range mm A(mm) Ring gage diameter L(mm) Extension rod Accuracy P5208-8 P5208-10 P5208-12 P5208-16 P5208-20 P5208-25 P5208-30 P5208-40 P5208-50 P5208-63 P5208-75 P5208-88 P5208-100 P5208-125 P5208-150 P5208-175 P5208-200 P5208-225 P5208-250 P5208-275 P5208-300 6-8mm 8-10mm 10-12mm 12-16mm 16-20mm 20-25mm 25-30mm 30-40mm 40-50mm 50-63mm 62-75mm 75-88mm 87-100mm 100-125mm 125-150mm 150-175mm 175-200mm 200-225mm 225-250mm 250-275mm 275-300mm 1.5mm 1.5mm 1.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 6mm 8mm 10mm 16mm 16mm 25mm 25mm 40mm 40mm 62mm 62mm 87mm 87mm 125mm optional 125mm optional 150mm optional 200mm optional 200mm optional 250mm optional 250mm optional 275mm optional 50mm 50mm 50mm 65mm 65mm 91mm 91mm 97mm 97mm 112mm 112mm 112mm 112mm 130mm 130mm 130mm 130mm 130mm 130mm 130mm 130mm 100mm 100mm 100mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm 0.004mm 0.004mm 0.004mm 0.004mm 0.004mm 0.004mm 0.004mm 0.004mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.007mm 0.007mm 0.007mm 0.007mm unit: mm Individual range Extension rod Range mm/in Standard ring PISTOL-GRIP THREE-POINT BORE GAGE SET P5209S-1 P5209S-2 P5209S-3 P5209S-4 6-12mm 12-20mm 20-50mm 50-100mm 6-8,8-10,10-12mm 12-16,16-20mm 20-25,25-30,30-40,40-50mm 50-63,62-75,75-88,87-100mm Ø6,8,10mm Ø16mm Ø25,40mm Ø62,87mm 100mm 150mm 150mm 150mm PISTOL-GRIP THREE-POINT BORE GAGE FEATURES: • Absolute capacitive system • 3V Lithium battery CR2032, battery life> 1 year • SPC data output • Built in wireless data transmission (optional) • Ratchet stop • Measuring contact points are designed to allow measurements near the bottom of blind holes • Measuring surface are carbide (12mm above) • Additional extensions can be added to increase the measuring depth(optional) • Sizes bigger than 100mm,setting rings optional • Display can rotate 90° • Packed in aluminum box

Ürün grubu	Mikrometreler
Katalog modelleri	PISTOL-GRIP THREE-POINT BORE GAGE; PISTOL-GRIP THREE-POINT BORE GAGE SET
Katalog	SCHWYZ MİCROMETRE KATALOĞU 2025-27
Katalog sayfası	36
