ELECTRIC Dikey Test Standı ve İlgili Modeller

ELECTRIC VERTICAL Test Standı ve İlgili Modeller, Basma, çekme, tork, yay ve malzeme dayanım testleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

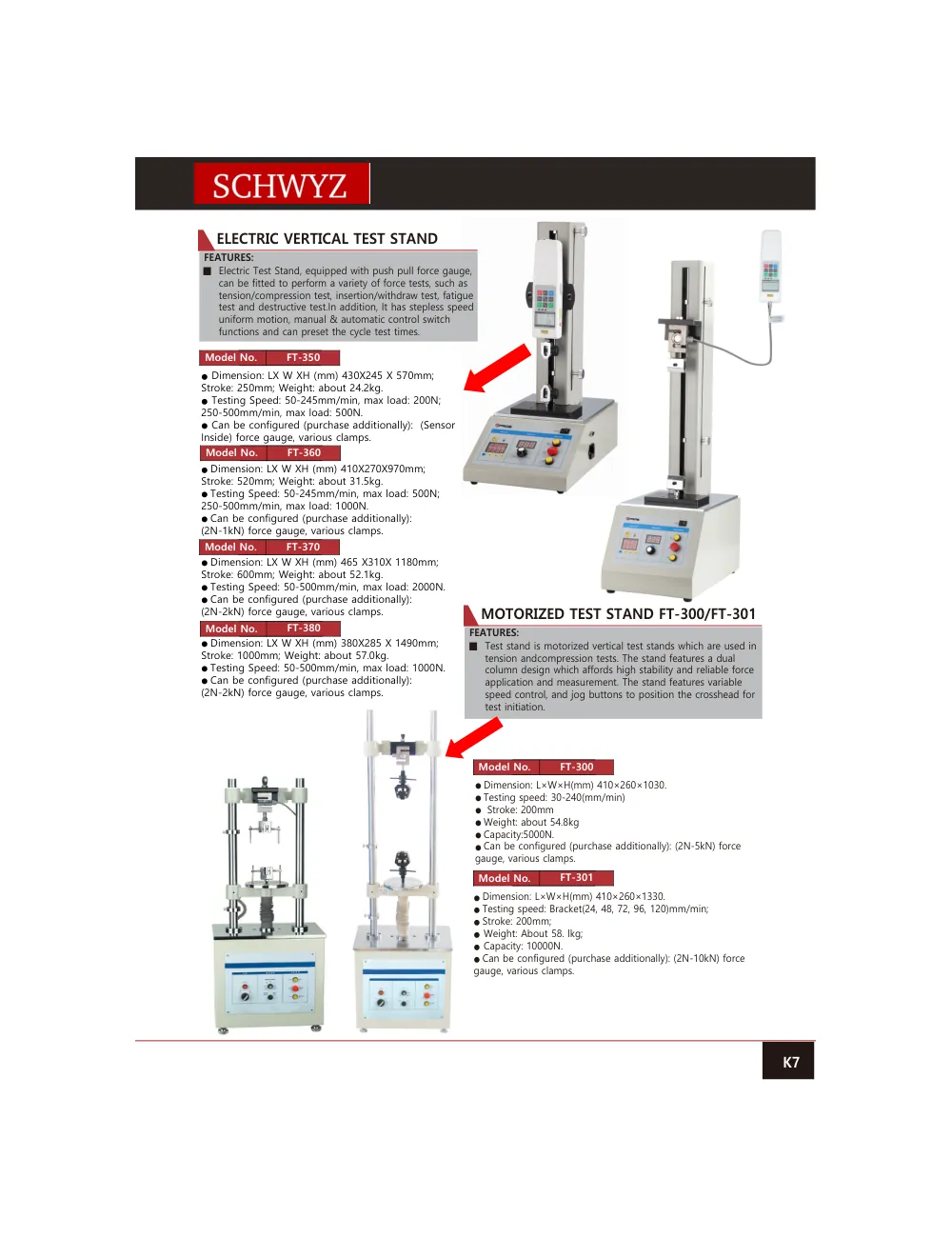

Katalog teknik bilgileri:

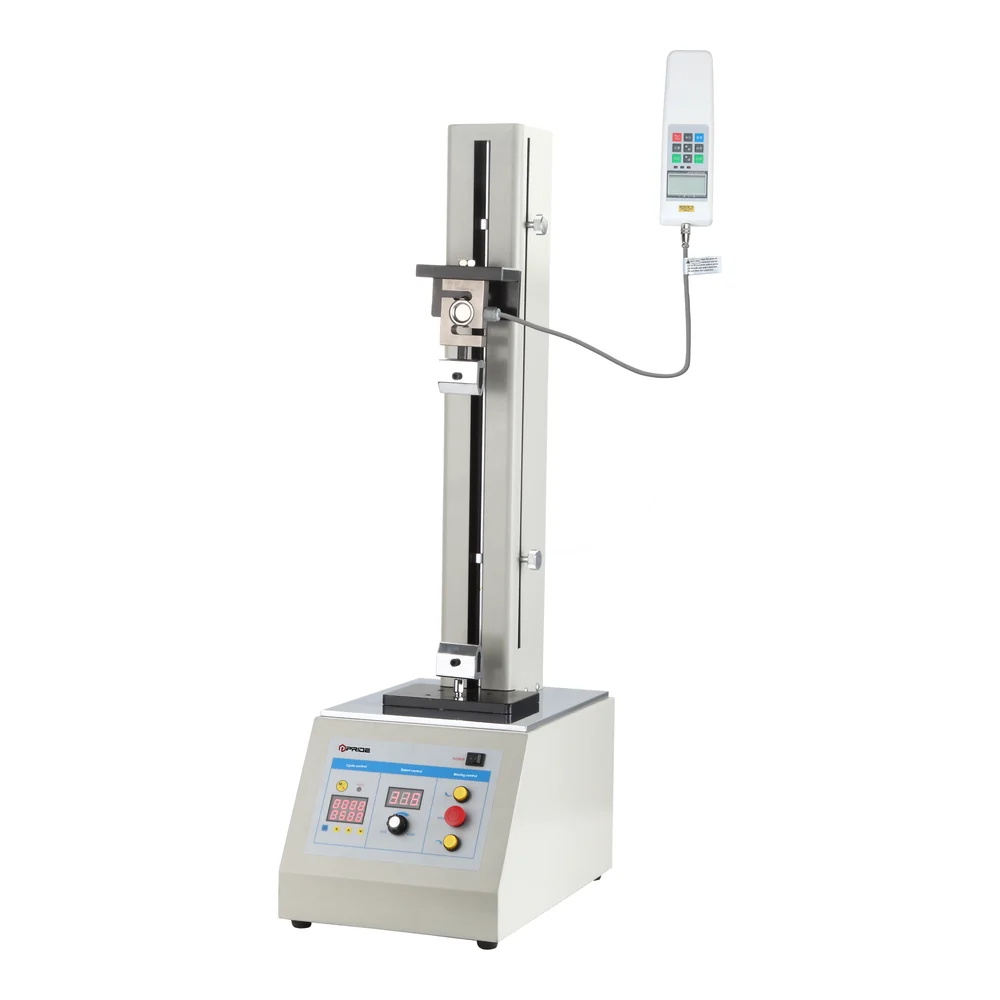

K7 FEATURES: ELECTRIC VERTICAL TEST STAND • Electric Test Stand, equipped with push pull force gauge, can be fitted to perform a variety of force tests, such as tension/compression test, insertion/withdraw test, fatigue test and destructive test.In addition, It has stepless speed uniform motion, manual & automatic control switch functions and can preset the cycle test times. • Dimension: LX W XH (mm) 430X245 X 570mm; Stroke: 250mm; Weight: about 24.2kg. • Testing Speed: 50-245mm/min, max load: 200N; 250-500mm/min, max load: 500N. • Can be configured (purchase additionally): (Sensor Inside) force gauge, various clamps. • Dimension: LX W XH (mm) 410X270X970mm; Stroke: 520mm; Weight: about 31.5kg. • Testing Speed: 50-245mm/min, max load: 500N; 250-500mm/min, max load: 1000N. • Can be configured (purchase additionally): (2N-1kN) force gauge, various clamps. • Dimension: LX W XH (mm) 465 X310X 1180mm; Stroke: 600mm; Weight: about 52.1kg. • Testing Speed: 50-500mm/min, max load: 2000N. • Can be configured (purchase additionally): (2N-2kN) force gauge, various clamps. • Dimension: LX W XH (mm) 380X285 X 1490mm; Stroke: 1000mm; Weight: about 57.0kg. • Testing Speed: 50-500mm/min, max load: 1000N. • Can be configured (purchase additionally): (2N-2kN) force gauge, various clamps. FT-350 Model No. FT-360 Model No. FT-370 Model No. FT-380 Model No. FEATURES: MOTORIZED TEST STAND FT-300/FT-301 • Test stand is motorized vertical test stands which are used in tension andcompression tests. The stand features a dual column design which affords high stability and reliable force application and measurement. The stand features variable speed control, and jog buttons to position the crosshead for test initiation. • Dimension: L×W×H(mm) 410×260×1030. • Testing speed: 30-240(mm/min) • Stroke: 200mm • Weight: about 54.8kg • Capacity:5000N. • Can be configured (purchase additionally): (2N-5kN) force gauge, various clamps. • Dimension: L×W×H(mm) 410×260×1330. • Testing speed: Bracket(24, 48, 72, 96, 120)mm/min; • Stroke: 200mm; • Weight: About 58. lkg; • Capacity: 10000N. • Can be configured (purchase additionally): (2N-10kN) force gauge, various clamps. FT-300 Model No. FT-301 Model No.

Ürün grubu	Kuvvet ve Çekme Test Cihazları
Katalog modelleri	ELECTRIC VERTICAL TEST STAND; MOTORIZED TEST STAND FT-300/FT-301
Katalog	SCHWYZ KUVVET VE ÇEKME TEST CİHZALARI 2025-27
Katalog sayfası	8
