Electronic Small Tip Lhbqnldsdq ve İlgili Modeller

Electronic Small Tip Lhbqnldsdq ve İlgili Modeller, Dış, iç, derinlik ve özel profil ölçümlerinde yüksek hassasiyet için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:
B12 ELECTRONIC SMALL TIP LHBQNLDSDQ FEATURES: • Resolution:0.001mm/0.00005" • Painted frame ,ratchet stop • IP65,carbided tips • The anvil and spindle have small diameter tips to measure splined shafts,slots and keyways • Tips:diameter x length=2x5mm(0.079x0.197") • Buttons:on/off, data set, mm/inch, ABS/INC • CR2032 battery,auto power off • Packed in plastic box or wooden box unit: mm P8067-50 P8067-75 P8067-25 Accuracy mm 0-25mm/0-1" 25-50mm/1-2" 50-75mm/2-3" Range mm/in ±0.002mm ±0.002mm ±0.003mm P8067-100 75-100mm/3-4" ±0.003mm P8067-150 P8067-175 P8067-125 100-125mm/4-5" 125-150mm/5-6" 150-175mm/6-7" ±0.003mm ±0.003mm ±0.004mm 2 6.5 5 5 Standard type 3 6.5 10 10 Optional Type B IP 65 SMALL TIP MICROMETER FEATURES: • Graduation: metric 0.01mm / inch 0.0001" • Ratchet stop, carbide tips, painted and fine cast frame • The anvil and spindle have small diameter tips to measure splined shafts,slots and keyways • Packed in plastic box unit: mm P8069-50 P8069-75 P8069-25 Accuracy mm 0-25mm 25-50mm 50-75mm Range mm/in 0.004mm 0.004mm 0.005mm P8069-125 P8069-150 P8069-100 75-100mm 100-125mm 125-150mm 0.005mm 0.006mm 0.006mm P8069-175 150-175mm 0.007mm Model No. 0-1" 1-2" 2-3" Range mm/in 3-4" 4-5" 5-6" 6-7" Model No. Metric Inch P8069-2 P8069-3 P8069-1 P8069-5 P8069-6 P8069-4 P8069-7 2 6.5 5 5 Standard type 3 6.5 10 10 Optional Type B ELECTRONIC BLADE MICROMETER FEATURES: unit: mm P8073-50 P8073-75 P8073-25 Accuracy mm 0-25mm/0-1" 25-50mm/1-2" 50-75mm/2-3" Range mm/in ±0.002mm ±0.002mm ±0.003mm P8073-100 75-100mm/3-4" ±0.003mm P8073-150 P8073-175 P8073-125 100-125mm/4-5" 125-150mm/5-6" 150-175mm/6-7" ±0.003mm ±0.003mm ±0.004mm • Resolution:0.001mm/0.00005" • Painted frame ,ratchet stop • • The anvil and spindle have blade tips to measure the groove diameter of shafts and keyways Blade tip:thickness x width x length=0.75x6x6.5mm(0.030x0.236x0.256") • Non-rotating spindle • Buttons:on/off, data set, mm/inch, ABS/INC • Packed in plastic box or wooden box 0.75 6.5 6

Ürün grubu	Mikrometreler
Katalog modelleri	ELECTRONIC SMALL TIP LHBQNLDSDQ; SMALL TIP MICROMETER; M etric; ELECTRONIC BLADE MICROMETER

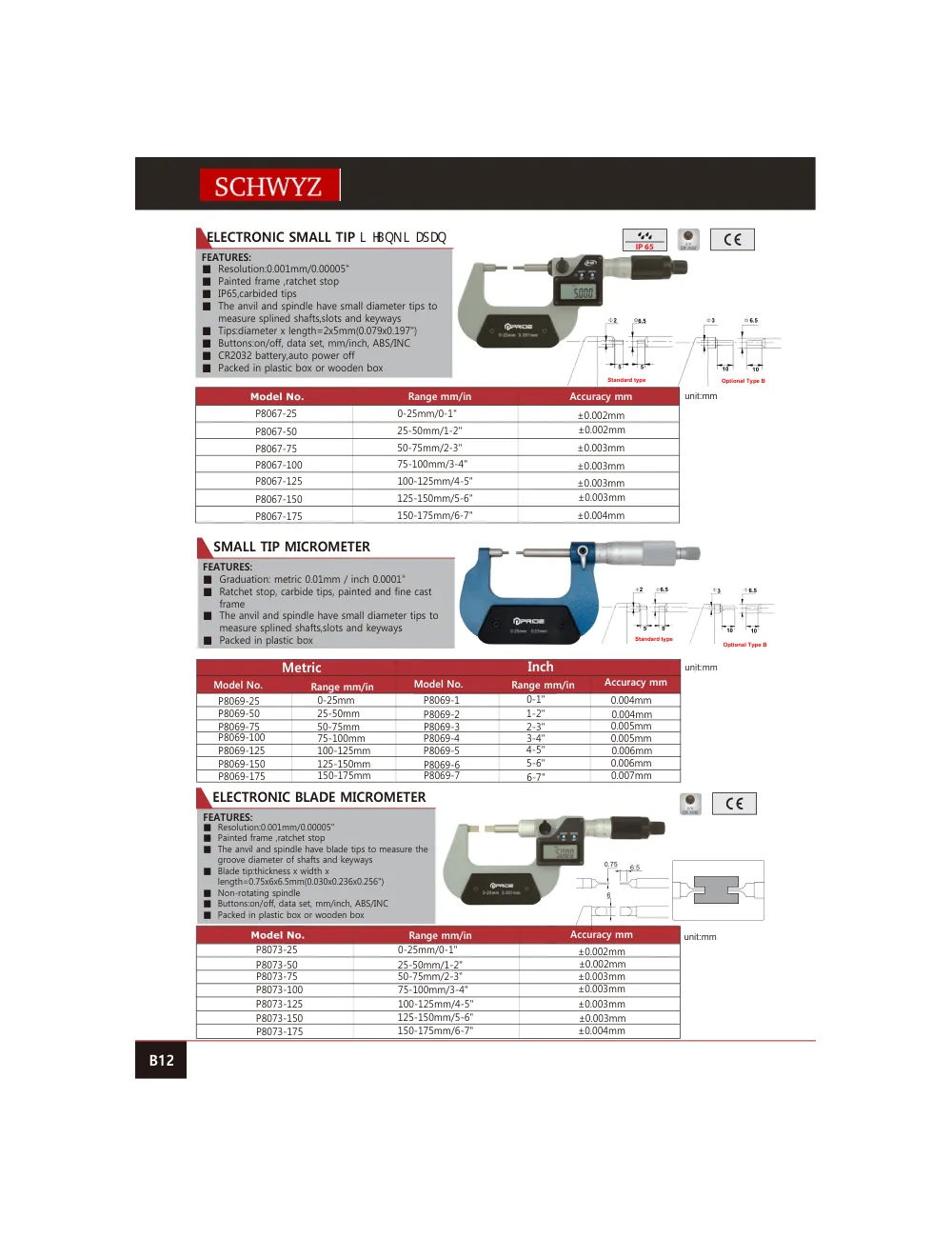

Katalog	SCHWYZ MİCROMETRE KATALOĞU 2025-27
Katalog sayfası	12
