INVERTED Metalurji Mikroskobu XJP-420

INVERTED Metalurji Mikroskobu XJP-420, Metalografik numune kesme, kalıplama, zımparalama, parlatma ve inceleme işlemleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

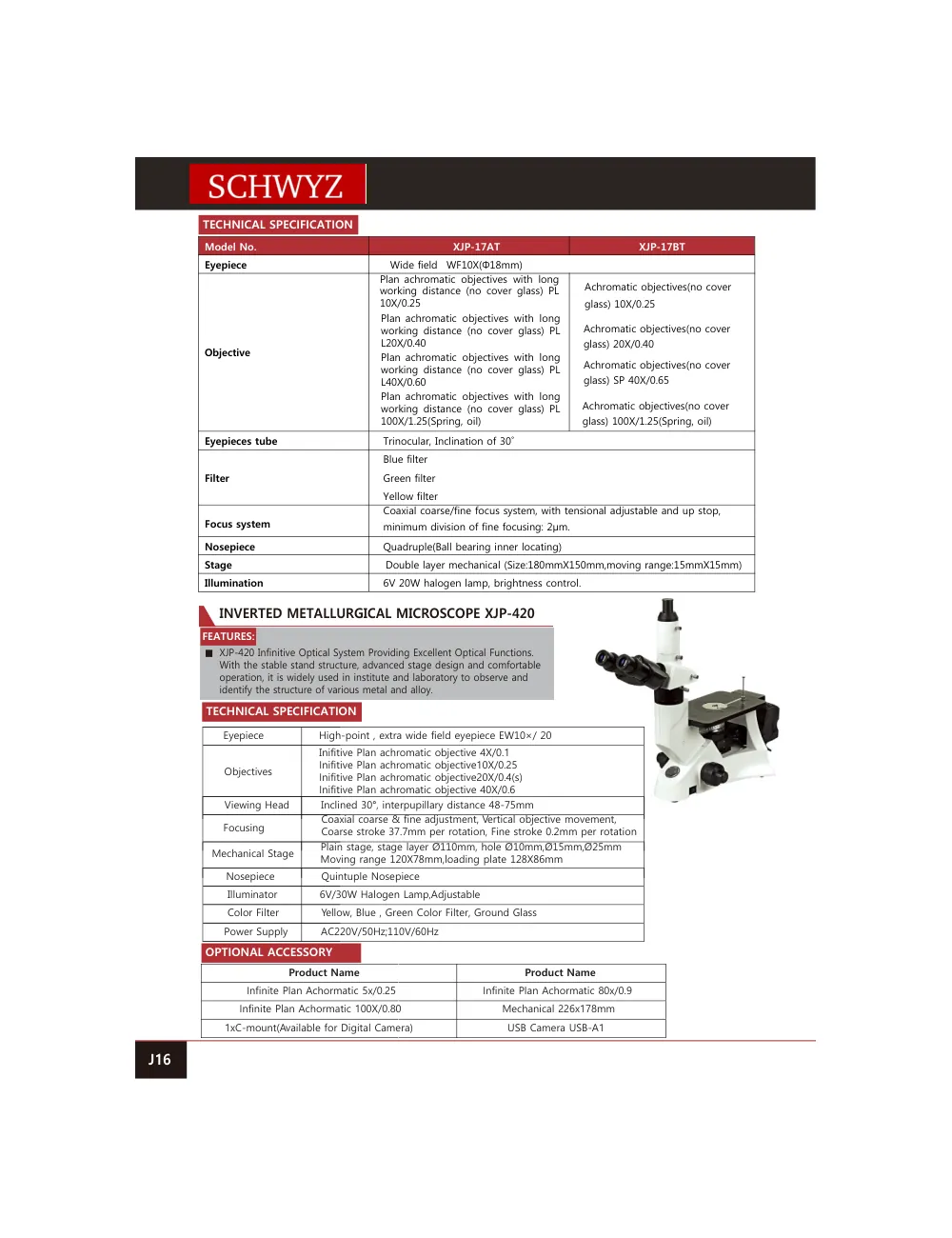

J16 INVERTED METALLURGICAL MICROSCOPE XJP-420 • XJP-420 Infinitive Optical System Providing Excellent Optical Functions. With the stable stand structure, advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy. Model No. XJP-17AT XJP-17BT Eyepiece Wide field WF10X(Φ18mm) Objective Plan achromatic objectives with long working distance (no cover glass) PL 10X/0.25 Achromatic objectives(no cover glass) 10X/0.25 Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 Achromatic objectives(no cover glass) 20X/0.40 Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 Achromatic objectives(no cover glass) SP 40X/0.65 Plan achromatic objectives with long working distance (no cover glass) PL 100X/1.25(Spring, oil) Achromatic objectives(no cover glass) 100X/1.25(Spring, oil) Eyepieces tube Trinocular, Inclination of 30˚ Filter Blue filter Green filter Yellow filter Focus system Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm. Nosepiece Quadruple(Ball bearing inner locating) Stage Double layer mechanical (Size:180mmX150mm,moving range:15mmX15mm) Illumination 6V 20W halogen lamp, brightness control. Eyepiece High-point , extra wide field eyepiece EW10×/ 20 Objectives Viewing Head Inclined 30°, interpupillary distance 48-75mm Focusing Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation Mechanical Stage Plain stage, stage layer Ø110mm, hole Ø10mm,Ø15mm,Ø25mm Moving range 120X78mm,loading plate 128X86mm Nosepiece Quintuple Nosepiece Illuminator 6V/30W Halogen Lamp,Adjustable Color Filter Yellow, Blue , Green Color Filter, Ground Glass Power Supply AC220V/50Hz;110V/60Hz TECHNICAL SPECIFICATION Inifitive Plan achromatic objective 4X/0.1 Inifitive Plan achromatic objective10X/0.25 Inifitive Plan achromatic objective20X/0.4(s) Inifitive Plan achromatic objective 40X/0.6 Product Name Product Name Infinite Plan Achormatic 5x/0.25 Infinite Plan Achormatic 80x/0.9 Infinite Plan Achormatic 100X/0.80 Mechanical 226x178mm 1xC-mount(Available for Digital Camera) USB Camera USB-A1 TECHNICAL SPECIFICATION FEATURES: OPTIONAL ACCESSORY

Ürün grubu	Metalografi Cihazları ve Sarf Malzemeleri
Katalog modelleri	INVERTED METALLURGICAL MICROSCOPE XJP-420
Katalog	SCHWYZ KESİCİ VE ÖĞÜTÜCÜ CİHAZ VE SARF MALZEMELERİ 2025-27
Katalog sayfası	17
