MOTORIZED Test Standı FT-400 ve İlgili Modeller

MOTORIZED Test Standı FT-400 ve İlgili Modeller, Basma, çekme, tork, yay ve malzeme dayanım testleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

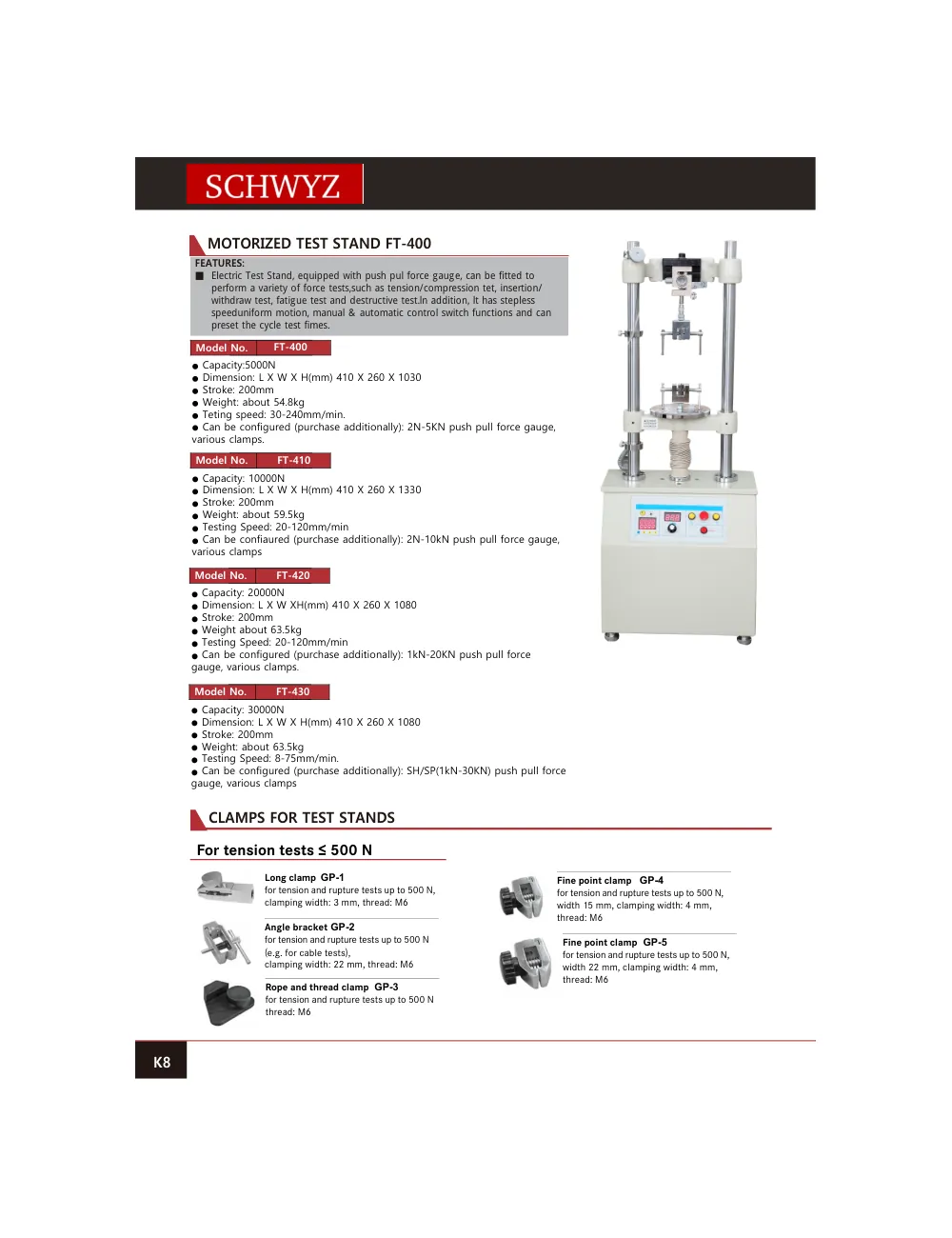

K8 FEATURES: MOTORIZED TEST STAND FT-400 • Electric Test Stand, equipped with push pul force gauge, can be fitted to perform a variety of force tests,such as tension/compression tet, insertion/ withdraw test, fatigue test and destructive test.ln addition, lt has stepless speeduniform motion, manual & automatic control switch functions and can preset the cycle test fimes. • Capacity:5000N • Dimension: L X W X H(mm) 410 X 260 X 1030 • Stroke: 200mm • Weight: about 54.8kg • Teting speed: 30-240mm/min. • Can be configured (purchase additionally): 2N-5KN push pull force gauge, various clamps. FT-400 Model No. • Capacity: 10000N • Dimension: L X W X H(mm) 410 X 260 X 1330 • Stroke: 200mm • Weight: about 59.5kg • Testing Speed: 20-120mm/min • Can be confiaured (purchase additionally): 2N-10kN push pull force gauge, various clamps FT-410 Model No. • Capacity: 20000N • Dimension: L X W XH(mm) 410 X 260 X 1080 • Stroke: 200mm • Weight about 63.5kg • Testing Speed: 20-120mm/min • Can be configured (purchase additionally): 1kN-20KN push pull force gauge, various clamps. FT-420 Model No. • Capacity: 30000N • Dimension: L X W X H(mm) 410 X 260 X 1080 • Stroke: 200mm • Weight: about 63.5kg • Testing Speed: 8-75mm/min. • Can be configured (purchase additionally): SH/SP(1kN-30KN) push pull force gauge, various clamps FT-430 Model No. For tension tests ≤ 500 N Long clamp GP-1 for tension and rupture tests up to 500 N, clamping width: 3 mm, thread: M6 Angle bracket GP-2 for tension and rupture tests up to 500 N (e.g. for cable tests), clamping width: 22 mm, thread: M6 Rope and thread clamp GP-3 for tension and rupture tests up to 500 N thread: M6 Fine point clamp GP-4 for tension and rupture tests up to 500 N, width 15 mm, clamping width: 4 mm, thread: M6 Fine point clamp GP-5 for tension and rupture tests up to 500 N, width 22 mm, clamping width: 4 mm, thread: M6 CLAMPS FOR TEST STANDS

Ürün grubu	Kuvvet ve Çekme Test Cihazları
Katalog modelleri	MOTORIZED TEST STAND FT-400; CLAMPS FOR TEST STANDS; For tension tests ≤ 500 N
Katalog	SCHWYZ KUVVET VE ÇEKME TEST CİHZALARI 2025-27
Katalog sayfası	9
