Dijital Torque Meter ve İlgili Modeller

Digital Torque Meter ve İlgili Modeller, Basma, çekme, tork, yay ve malzeme dayanım testleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:
K15 FEATURES: • Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set(1-10 seconds); • Automatic power off function: This function saves battery and keeps the gauge safe, also the power off time(1-60minutes) can be set By yourself; • Comparing function: Initial input of the tolerance limit(Max/ Min)enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp); • Memory function: Memory 10 testing data, and calculate the average; • Three units conversion: Converting three units(N.m, kgf.cm, ibf.in) automatically; Inside printer: Printing testing curve and analysis report of 10 groups of tested data. DIGITAL TORQUE METER Model No. TR-50 TR-100 TR-200 TR-500 Capacity 50N.m 100N.m 200N.m 500N.m Graduation 0.02N.m 0.05N.m 0.1N.m 0.2N.m Accuracy Sensor inside Sensor ±1%FS Test speed ≤5000rpm Power 220±10% v 100w Weight 22KG FEATURES: • Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set(1-10 seconds); Automatic power off function: Power off time (1-60minutes) can be set by yourself; Comparing function: Initial input of the tolerance limit(Max/Min)enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp); Memory function: Memory 10 testing data, and calculate the average; Units conversion: Converting three units(N.m,kgf.cm,ibf.in) automatically; Printer inside: Printing the tested curve or the analysis report of 10 groups value; RS-232C output: Connecting outside equipment and using the related CD for transmitting DIGITAL DYNAMIC TORQUE METER Model No. TR-1D TR-2D TR-5D TR-10D TR-20D TR-50D TR-100D TR-200D TR-500D Capacity 1N.m 2N.m 5N.m 10N.m 20N.m 50N.m 100N.m 200N.m 500N.m Graduation 0.000 5N.m 0.001 N.m 0.002 N.m 0.005 N.m 0.01 N.m 0.02 N.m 0.05 N.m 0.1 N.m 0.2 N.m Accuracy Sensor inside Connectio n size ±1%FS Max speed ≤5000rpm Power 220±10% v 100w Weight 22KG Digital Dynamic Torque Meter, an intelligent metrologic instrument, designed for detecting various dynamic torque, is specialized in calibrating the output torque of all kinds of electrical machineries and moderating machines. It is applied to trades such as electrical machineries, machine- building, scientific research institution, etc TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION

Ürün grubu	Kuvvet ve Çekme Test Cihazları
Katalog modelleri	DIGITAL TORQUE METER; Capacity; Graduation; Sensor inside; Sensor; Test speed; Power; Weight
Katalog	SCHWYZ KUVVET VE ÇEKME TEST CİHZALARI 2025-27

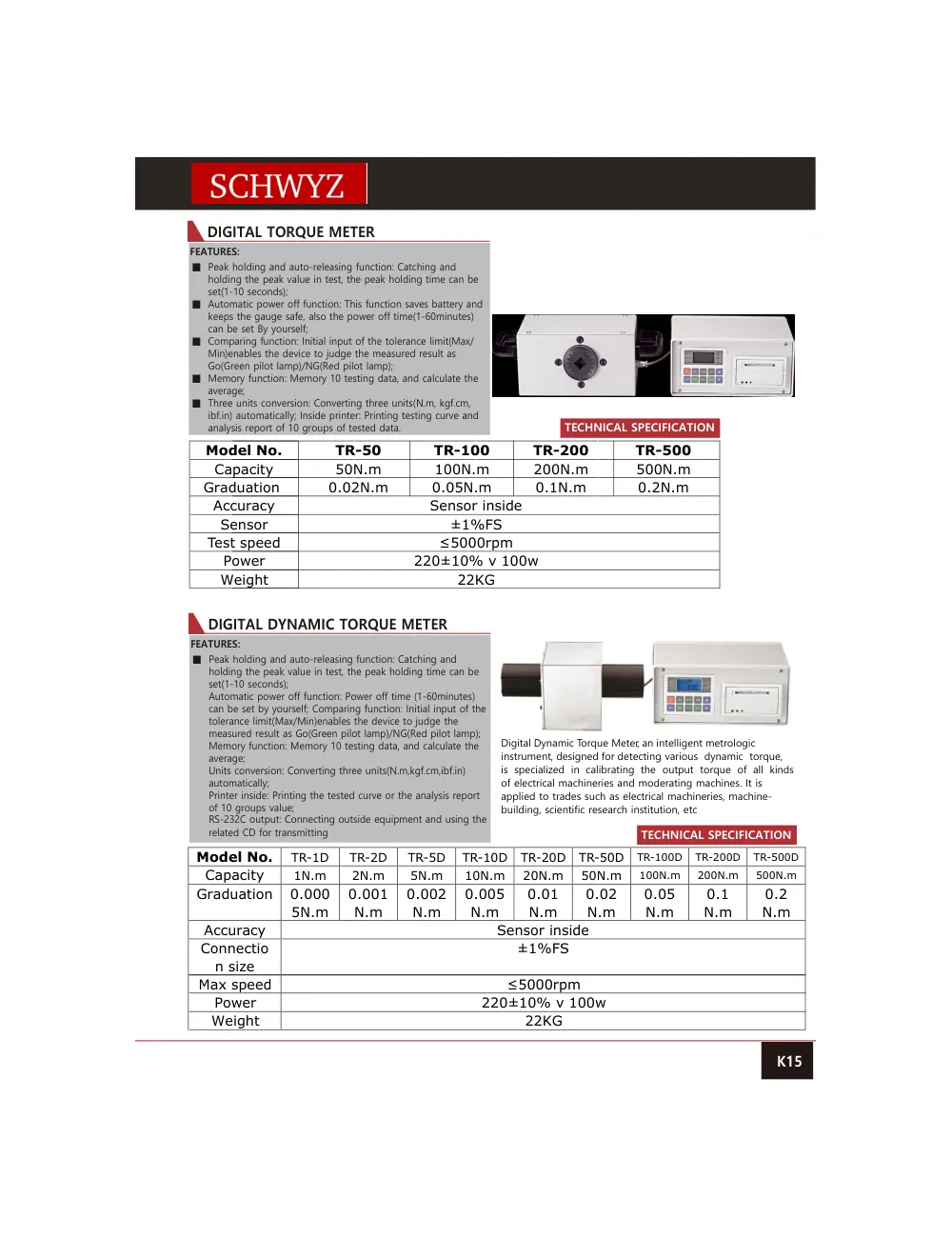

Katalog sayfası	16
