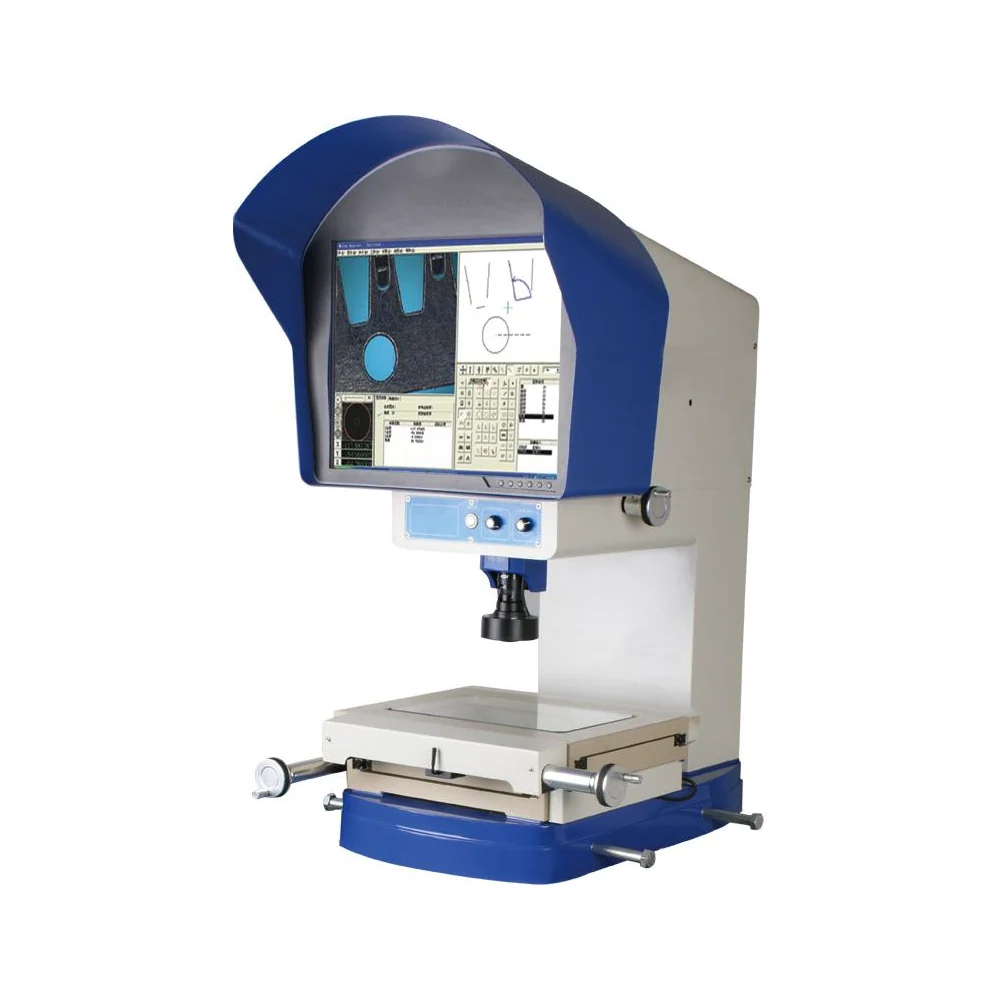

Dikey Video Profil Projektörü Pv-500 ve İlgili Modeller

Vertical Video Projector Pv-500 ve İlgili Modeller, Profil projeksiyonu, görüntülü ölçüm ve koordinat ölçüm uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

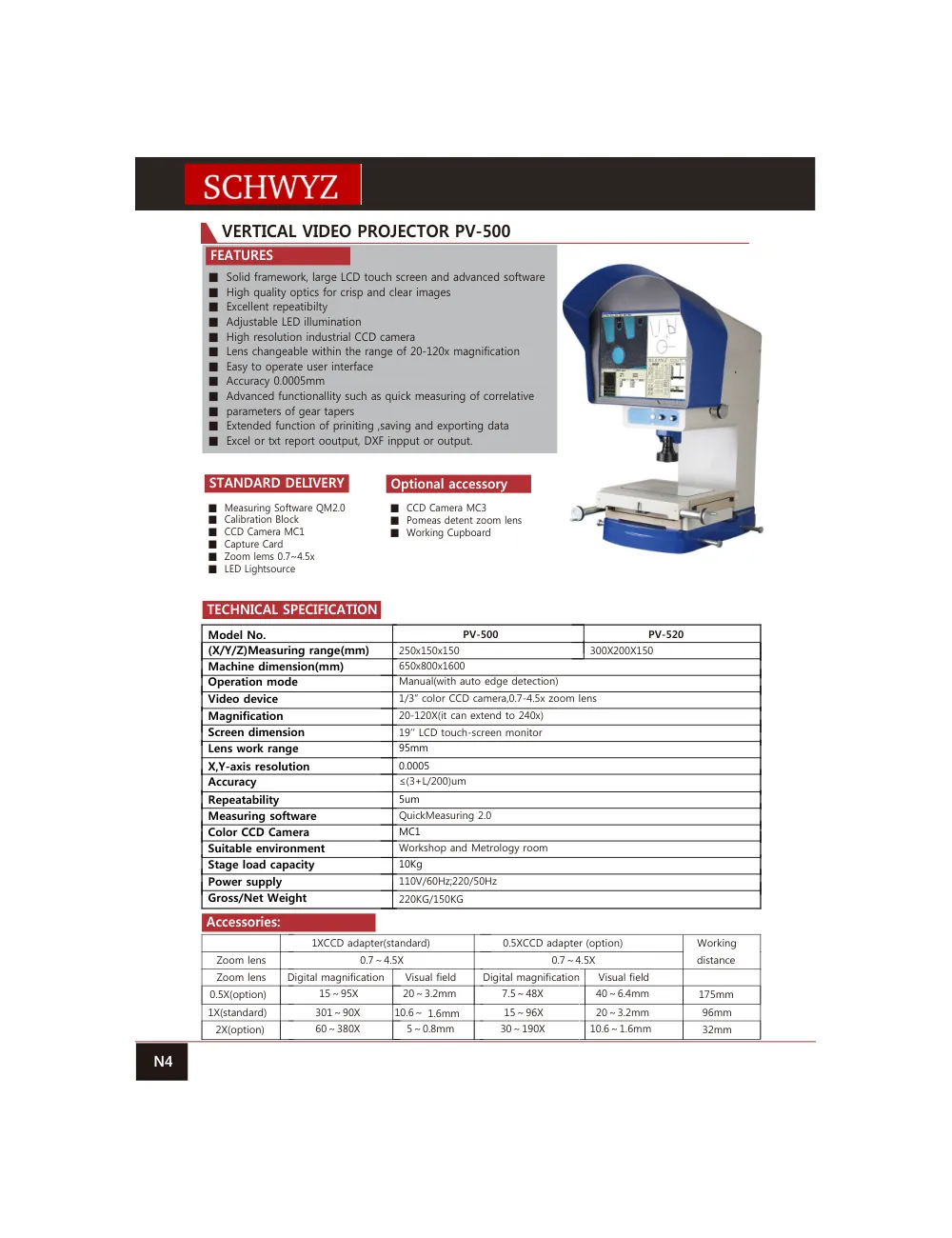

VERTICAL VIDEO PROJECTOR PV-500 • Solid framework, large LCD touch screen and advanced software • High quality optics for crisp and clear images • Excellent repeatibilty • Adjustable LED illumination • High resolution industrial CCD camera • Lens changeable within the range of 20-120x magnification • Easy to operate user interface • Accuracy 0.0005mm • Advanced functionallity such as quick measuring of correlative • parameters of gear tapers • Extended function of priniting ,saving and exporting data • Excel or txt report ooutput, DXF inpput or output. • Measuring Software QM2.0 • Calibration Block • CCD Camera MC1 • Capture Card • Zoom lems 0.7~4.5x • LED Lightsource • CCD Camera MC3 • Pomeas detent zoom lens • Working Cupboard STANDARD DELIVERY TECHNICAL SPECIFICATION Optional accessory Model No. PV-500 PV-520 (X/Y/Z)Measuring range(mm) 250x150x150 300X200X150 Machine dimension(mm) 650x800x1600 Operation mode Manual(with auto edge detection) Video device 1/3” color CCD camera,0.7-4.5x zoom lens Magnification 20-120X(it can extend to 240x) Screen dimension 19’’ LCD touch-screen monitor Lens work range 95mm X,Y-axis resolution 0.0005 Accuracy ≤(3+L/200)um Repeatability 5um Measuring software QuickMeasuring 2.0 Color CCD Camera MC1 Suitable environment Workshop and Metrology room Stage load capacity 10Kg Power supply 110V/60Hz;220/50Hz Gross/Net Weight 220KG/150KG 1XCCD adapter(standard) 0.5XCCD adapter (option) Working distance Zoom lens 0.7～4.5X 0.7～4.5X Zoom lens Digital magnification Visual field Digital magnification Visual field 0.5X(option) 15～95X 20～3.2mm 7.5～48X 40～6.4mm 175mm 1X(standard) 301～90X 10.6～1.6mm 15～96X 20～3.2mm 96mm 2X(option) 60～380X 5～0.8mm 30～190X 10.6～1.6mm 32mm Accessories: FEATURES N4

Ürün grubu	Optik ve Dokunmalı Ölçüm Sistemleri
Katalog modelleri	VERTICAL VIDEO PROJECTOR PV-500; • Solid framework, large LCD touch screen and advanced software; • High quality optics for crisp and clear images; • Excellent repeatibilty; • Adjustable LED illumination; • High resolution industrial CCD camera; • Lens changeable within the range of 20-120x magnification; • Easy to operate user interface
Katalog	SCHWYZ PROJEKSİYON VE DOKUNMA ÖLÇÜMCİHAZLARI 2025-27
Katalog sayfası	5
