Taşınabilir Measuring Microscope ve İlgili Modeller

Portable Measuring Microscope ve İlgili Modeller, Profil projeksiyonu, görüntülü ölçüm ve koordinat ölçüm uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:

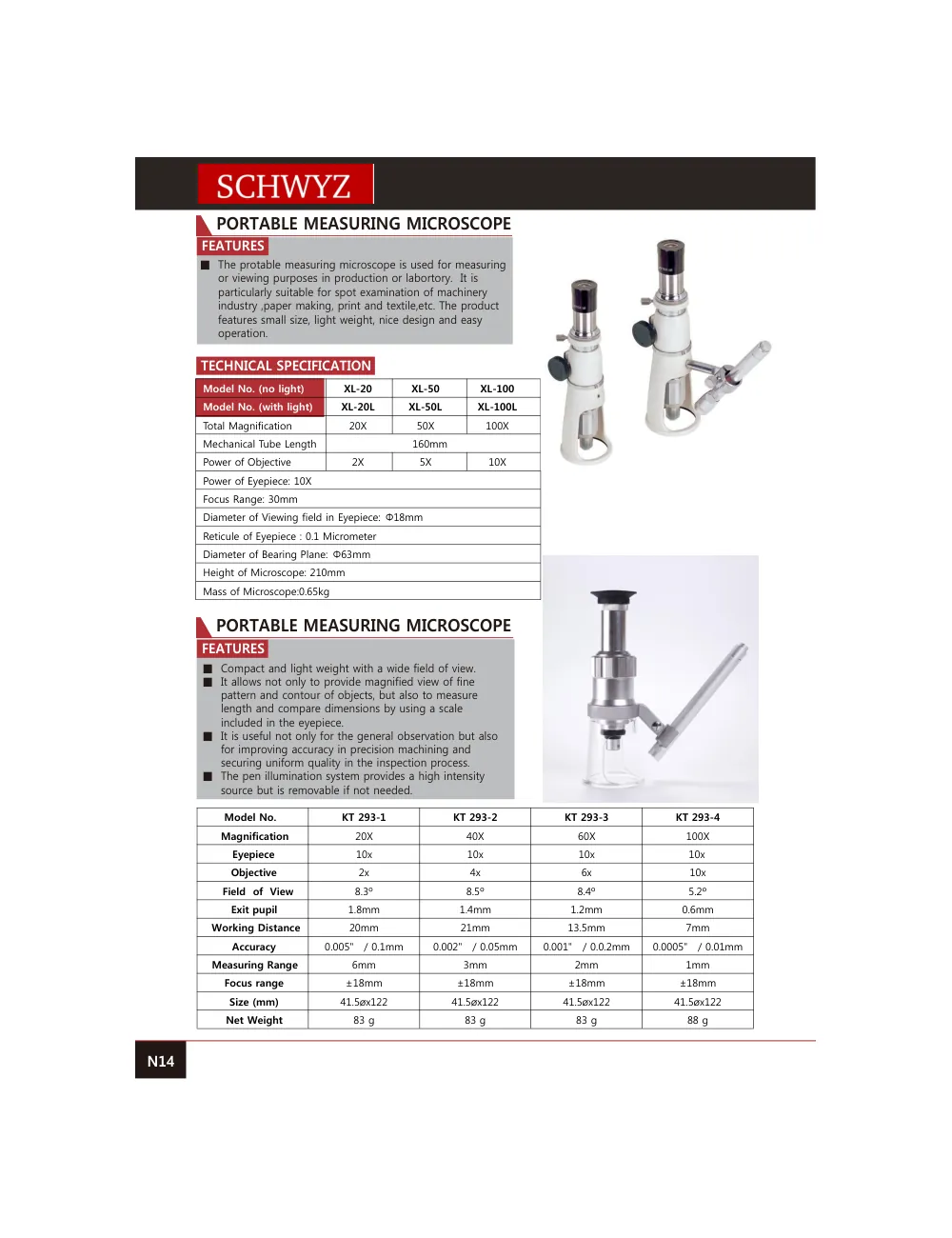

N14 PORTABLE MEASURING MICROSCOPE • The protable measuring microscope is used for measuring or viewing purposes in production or labortory. It is particularly suitable for spot examination of machinery industry ,paper making, print and textile,etc. The product features small size, light weight, nice design and easy operation. PORTABLE MEASURING MICROSCOPE • Compact and light weight with a wide field of view. • It allows not only to provide magnified view of fine pattern and contour of objects, but also to measure length and compare dimensions by using a scale included in the eyepiece. • It is useful not only for the general observation but also for improving accuracy in precision machining and securing uniform quality in the inspection process. • The pen illumination system provides a high intensity source but is removable if not needed. Model No. (no light) XL-20 XL-50 XL-100 Model No. (with light) XL-20L XL-50L XL-100L Total Magnification 20X 50X 100X Mechanical Tube Length 160mm Power of Objective 2X 5X 10X Power of Eyepiece: 10X Focus Range: 30mm Diameter of Viewing field in Eyepiece: Φ18mm Reticule of Eyepiece : 0.1 Micrometer Diameter of Bearing Plane: Φ63mm Height of Microscope: 210mm Mass of Microscope:0.65kg Model No. KT 293-1 KT 293-2 KT 293-3 KT 293-4 Magnification 20X 40X 60X 100X Eyepiece x 10 10x x 10 10x Objective x 2 x 4 6x 10x Field of View 8.3º º 8.5 º 8.4 5.2º Exit pupil 1.8mm 1.4mm 1.2mm 0.6mm Working Distance 20mm 21mm 13.5mm 7mm Accuracy 0.005" / 0.1mm 0.002" / 0.05mm 0.001" / 0.0.2mm 0.0005" / 0.01mm Measuring Range 6mm 3mm 2mm 1mm Focus range ±18mm ±18mm ±18mm ±18mm Size (mm) 41.5øx122 41.5øx122 41.5øx122 41.5øx122 Net Weight 83 g 83 g 83 g 88 g FEATURES TECHNICAL SPECIFICATION FEATURES

Ürün grubu	Optik ve Dokunmalı Ölçüm Sistemleri
Katalog modelleri	PORTABLE MEASURING MICROSCOPE; • The protable measuring microscope is used for measuring; or viewing purposes in production or labortory. It is; particularly suitable for spot examination of machinery; industry ,paper making, print and textile,etc. The product; features small size, light weight, nice design and easy; operation.; • Compact and light weight with a wide field of view.
Katalog	SCHWYZ PROJEKSİYON VE DOKUNMA ÖLÇÜMCİHAZLARI 2025-27
Katalog sayfası	15
