Working Stage ve İlgili Modeller

Working Stage ve İlgili Modeller, Profil projeksiyonu, görüntülü ölçüm ve koordinat ölçüm uygulamaları için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:
N6 HIGH ACCURACY 3D MANUAL VISION MEASURING MACHINE • High precision Granite Plate base and pillar, to ensure high stability and accuracy; • High precision toothless rod and fast moving locking device, to ensure hysterisis error is within 2um; • High accuracy A grade optical linear scale with precision working stage, to ensure the accuracy is within 3+L/200um; • High definitive detented zoom lens and high resolution color digital camera, to ensure clear image without distortion; • With programmable surface 4-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division; • Imported contact probe and powerful function iMeasuring3.1 3D Measuring Software, highly enhance the quality control; STANDARD DELIVERY Product Name Model No. Product Name Model No. 2.5D Measuring Software PIM2.1 Video Capture Card P527-130 Contour LED Parallel Illumination P425-100 DELL PC System P581-960 Surface 4R/8D LED Illumination P425-130 AV Video Cable P581-940 Detented Zoom Lens P421-100 RS232 Data Cable P581-930 HD700TVL Color Camera P484-130 Optical Calibration Block P581-800 Optional Accessories Product Name Model No. Product Name Model No. Electronic Zoom Lens P421-140 Rotary Tables RT 2 P581-520 12.5X Detented Zoom Lens P421-100 Rotary Tables RT 3 P581-530 Coaxial Detented Zoom Lens P421-120 Working Cupboard ST 05 P581-650 0.5X Auxiliary Objective P423-050 Swivel Center Support P581-850 2X Auxiliary Objective P423-200 Foot Switch P581-350 Laser Positioning System P581-330 LED Illumination Working Stage Less Error Within 2um High Accuracy ≤ 2.4 +L/200(um 3D Measurement Imported Touch Probe High Resolution 700TVL Color Measurement Software Measuring 3.1 FEATURES

Ürün grubu	Optik ve Dokunmalı Ölçüm Sistemleri
Katalog modelleri	Working Stage; LED Illumination; HIGH ACCURACY 3D MANUAL VISION MEASURING MACHINE; • High precision Granite Plate base and pillar, to; ensure high stability and accuracy;; • High precision toothless rod and fast moving; locking device, to ensure hysterisis error is; within 2um;

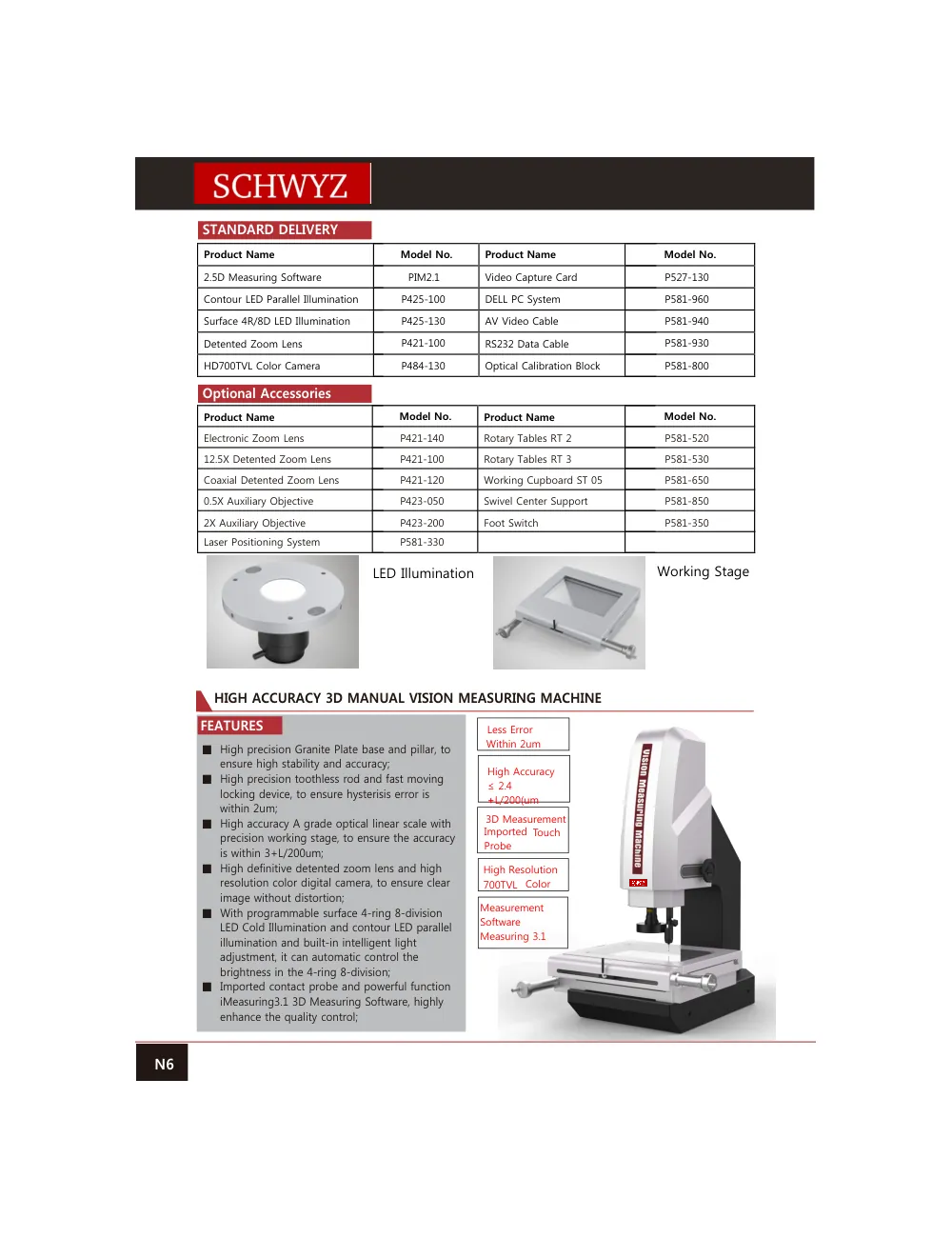

Katalog	SCHWYZ PROJEKSİYON VE DOKUNMA ÖLÇÜMCİHAZLARI 2025-27
Katalog sayfası	7
