5-Station Hand Grinder Metpol 550 ve İlgili Modeller

5-Station Hand Grinder Metpol 550 ve İlgili Modeller, Metalografik numune kesme, kalıplama, zımparalama, parlatma ve inceleme işlemleri için SCHWYZ ürün ailesidir. Modeller, ölçüm aralıkları, çözünürlükler ve teslimat seçenekleri aşağıdaki katalog teknik bilgilerinde yer alır.

Katalog teknik bilgileri:
J14 5-STATION HAND GRINDER METPOL 550 • Distance between the centers of two rollers: 255mm • Equipped with water cooling system • Sand belt: 920mm x 100mm (L x W) • Rotating speed: 1400 rpm • Motor: 550W • Power supply: 380V, 3-phase, 50Hz • 5-station hand grinder • Wet or dry grinding • Manual grinder • Easy to change abrasive rolls • Easy to use • Robust and durable design • Low cost • Easy to service ABRASIVE BELT SURFACE GRINDER METBEL 300 Grinding stations 240 grit,360 grit,600 grit,800 grit,1200 grit Construction Aluminum casting Cooling rinse system Water control Dimensions (W x L x H) 610 x 510 x 130mm • Distance between the centers of two rollers: 255mm • Equipped with water cooling system • Sand belt: 920mm x 100mm (L x W) • Rotating speed: 1400 rpm • Surface speed: 768 rpm • Motor: 550W • Power supply: 380V, 3-phase, 50Hz • Dimensions: 600 × 550 × 310 mm ABRASIVE BELT SURFACE GRINDER METBEL 310 FEATURES: METPOL 550 5-station hand grinder offers the small lab the ability to prepare samples for macro viewing within minutes. This hand grinder offers 5 stations for coarse to fine grinding. With the addition of the 5th station a near polished specimen can be obtained using a 1200 (P4000) grit SiC paper. METPOL 550 has an easy to advance system for providing fresh abrasive for consistent and rapid grinding,it also has an adjustable flow valve for wet grinding as well. METBEL 300 ABRASIVE BELT SURFACE GRINDER made according to the international standard and advanced process technique. It adopts sand belt to grind and polish the specimen. The different belts can be changed swiftly. This machine can be used to replace the disc grinder and manual type abrasive paper grinding. It only takes 1-2 minutes to for each belt to finish the operation. For the grinding of spectroscopy specimen, it is very economic to save time, labour and abrasive paper. This machine can be widely used in laboratories, researching institutes and factories. TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION METBEL 310 ABRASIVE BELT SURFACE GRINDER made according to the international standard and advanced process technique. It adopts sand belt to grind and polish the specimen. The different belts can be changed swiftly. This machine can be used to replace the disc grinder and manual type abrasive paper grinding. It only takes 1-2 minutes to for each belt to finish the operation. For the grinding of spectroscopy specimen, it is very economic to save time, labour and abrasive paper. This machine can be widely used in laboratories, researching institutes and factories.

Ürün grubu	Metalografi Cihazları ve Sarf Malzemeleri
Katalog modelleri	5-STATION HAND GRINDER METPOL 550; ABRASIVE BELT SURFACE GRINDER METBEL 300; ABRASIVE BELT SURFACE GRINDER METBEL 310

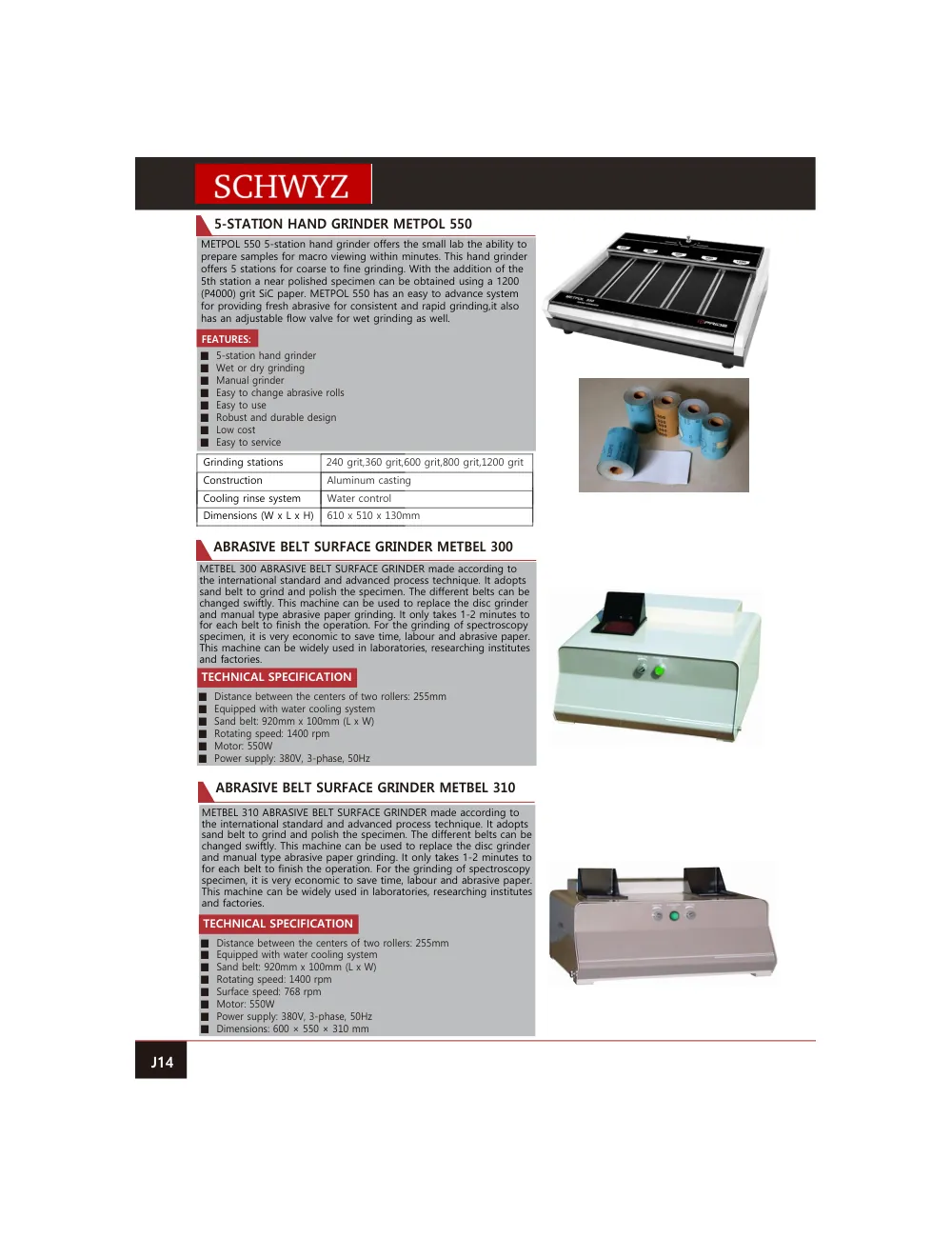

Katalog	SCHWYZ KESİCİ VE ÖĞÜTÜCÜ CİHAZ VE SARF MALZEMELERİ 2025-27
Katalog sayfası	15
